High Efficiency Engine Hydraulic Cone Crusher Price for Sale

Product Description

Product Description

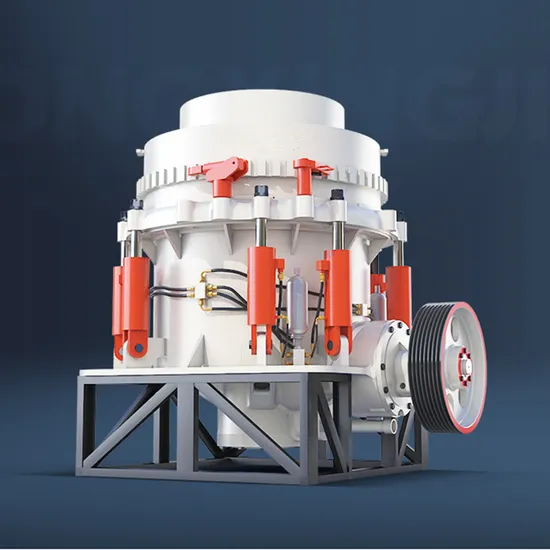

Hydraulic Cone Crusher The hydraulic cone crusher of H series adopts computer optimization design to speed up main shaft speed. The unique crushing chamber replace system can quickly replace components in crushing chamber to meet different size requirement. This hydraulic cone crusher is widely used in Mining industry. It is suitable for hard stone such as granite and basalt. The friction disc design and rotation of eccentric shaft bushing around fix cone plus more reasonable "labyrinth seal" system are unique features of H series, which have more advantages like easier operation, larger application scope, more reliable, more smooth functioning comparing with spring and traditional cone crusher. It is the most ideal equipment for large stone crushing factory and mining industry.
Product Features
1,The hydraulic system allows for easy and precise adjustment of the crusher's discharge opening size.
2,Hydraulic cone crushers are equipped with hydraulic cylinders that provide overload protection.
3,High-performance crushing chamber.
4,Automatic control system.
6,Efficient power utilization.
7,Versatility.
8,Enhanced safety features.

Product Parameters

Model	Feeding Size(mm)	Discharge size (mm)	Capacity(t/h)	Motor Power(kw)
HP100	33-175	6-19	45-140	4P 100
HP200	116-235	8-19	90-250	4P 160
HP300	120-265	8-25	115-440	4P 220
HP400	135-360	10-30	140-630	4P 315
HP500	150-370	10-38	175-790	4P 400
HP800	235-450	10-38	260-1200	4P 830

Working Priciple
Success Case


Company Profile
Packaging & Shipping
Certifications

---
