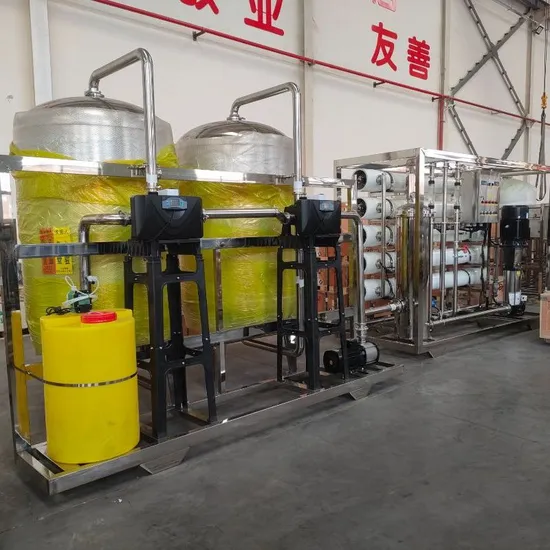

10t/H Industrial RO Filter Water Treatment Plant Water Purifier Reverse Osmosis Filtration System

Product Description

Products Description Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids, organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water is delivered under a pressure of approximately 7-10/cm2 through reverse osmosis membranes. Water permeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99% bacterial in the feed water.
*Raw water Range we can do: Brackish water TDS less than 1000ppm, ground/well water, city water,rains,river/lake water ... or according to customer's requirements
*Capacity we can do;500lph,1000lph,2000lph,3000lp...50000lph,or according to customer's requirements
*Output water application:drinking/irrigating water, commercial bottled selling water,human consumption drinking water...or according to customer's requirements
low Chart Of RO Water Treatment Machine
Raw water pump - Sand filter - Carbon filter -Cartridge filter - High pressure pump- RO membrane host-RO membrane-UV -Ozone
1. Raw water supply pump
2. High-pressure pump
3. Reverse Osmosis Membrane:
4. Pre-treatment device
5. Conduit: To use PVC
6. Electric standard configuration: PLC automatically control
7. Electrical components: To use Zhengtai's and Sch**der's products
8. Frame: To use stainless steel.

4 Reverse Osmosis Modules( RO)
RO system is key part for the water treatment system, which is widely used to make the pure water and drinking water. RO membrane removes many types of large molecules and ions from solutions by applying pressure to the solution when it is on one side of a selective membrane. The result is that the solute such as iron, Virus, bacteria and solids is retained on the pressurized side of the membrane and the pure solvent is allowed to pass to the other side.
5 Piping, Valves & Fittings
The pipe, valves and fittings (including tubing) ball valves, butterfly valves, piping used to the system is SS304. Reverse Osmosis Modules is equipped with sample valve for the convenience to check the product water.
6 Control devices
The whole automatic production line is achieved through the converter and PLC programmer and data collector such as the liquid lever sensor, flow sensor and etc. The whole production line is monitored by remote computer. When the water level of the product water tank is high, the system will stop automatically. When the water level of the product water tank is low, the system will run automatically.

Model	Water Making Ability	Inlet Caliber	Effluent Caliber	Blowdown alCer	Size(mm	Power
YSRO-0.5T	0.5m3/h	DN20	DN20	DN15	1500×600×1500	1.3kw
YSRO-1T	1m3/h	DN25	DN25	DN20	1700×600×1500	2.1kw
YSRO-2T	2m3/h	DN32	DN25	DN20	2500×1000×1950	4.4kw
YSRO-3T	3m3/h	DN40	DN32	DN25	2500×1200×2150	4.5kw
YSRO-5T	5m3/h	DN50	DN40	DN32	2500×1350×2150	7.0kw
YSRO-8T	8m3/h	DN50	DN50	DN40	3500×1500×2150	11kw
YSRO-10T	10m3/h	DN50	DN50	DN40	3500×1600×2300	15kw

Recommend Products Company Profile Product packaging Certifications FAQ

Q:What is the advantage about your company?

A:Our company has professional team and professional production line

Q:Why should I choose your products?

A:Our products are high quality and low price

Q:Any other good service your company can provide?

A:Yes,we can provide good after-sale and fast delivery.

---
