New and Used Disposable Baby Diapers Making Machine

Product Description

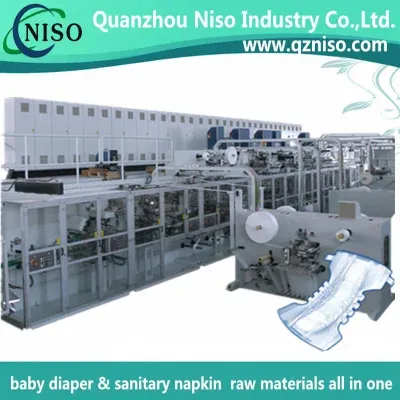

Product Description Hot Sale I Shape Disposable Baby Diapers Making Machine
Four kinds of baby diaper machine for you to choose

Part 1: Parameter
	stepping motor control machine	variable frequency motor control machine	semi-servo motor control machine	full-servo motor control machine
automaticity	semi-automatic	full-automatic	full-automatic	full-automatic
Design Speed	400 pcs/min	500 pcs/min	500 pcs/min	600 pcs/min
stable production	300pcs/min	400pcs/min	400pcs/min	500pcs/min
power	200kw	250kw	250kw	280kw
Efficiency rate	>=85%	>=88%	>=88%	>=88%
Rejection rate	<= 3%	<= 2%	<= 2%	<= 2%
Machine weight	45 Ton	60 Ton	60 Ton	60 Ton
Machine size	25m * 3m * 3m	30m * 3m * 4m	40m * 3m * 5m	30m * 3m * 5m
Operating size	25m * 7m * 5m	30m * 7m * 5m	30m * 7m * 5m	30m * 7m * 5m
safe door	Back	Back & Front	Back & Front	Back & Front
Air pressure	0.6-0.8MPA
color	Customlized
Machine direction	Customlized
Part 2 Electric part
Programmable Logic Controller (PLC)	×	Mitsubishi/Simense	Mitsubishi/Simense	Mitsubishi/Simense
Touch screen control	×	Mitsubishi/Simense	Mitsubishi/Simense	Mitsubishi/Simense
Unwinding of the raw material	Mechanical	Initiative	Initiative	Initiative
Materials shaft stand	Machanical shaft stand	Pneumatic shaft stand	Pneumatic shaft stand	Pneumatic shaft stand
Tension control system for raw material	×	√	√	√
Unwinding motor	×	variable frequency motor	variable frequency motor	Servo motor
Web guider	Manual	Auto	Auto	Auto
Driving system	One main motor	Three main motors	Servo motor control independently	Servo motor control independently
Materials splicing	Manual	Auto	Auto	Auto
Flat belts	China	Switzerland	Switzerland	Switzerland
Timing belts	China	USA	USA	USA
Bearing	China	Japan	Japan	Japan

Orther information
1. the product of the machine: customerized. T shape diaper, I shape diaper
2. the size of the diaper: S,M,L,XL
3. all the unwinding of the raw material are automatical and Initiative, except the frontal tape and side tape are mechanical.
Because, It is no need to use Initiative unwinding.
4. it seems that the variable frequency motor control machine and semi-servo motor control machine share very similar
parameter, why should buyers choose expensive semi-servo motor control machine? Because, I will be much
easier and cost less once the manufaturer want to change the size of the product. if you buy a
semi-servo motor control machine, you just need to change cutter instead of change all the transfer part of the cutter.
Why Choose Our Machine?
1. the whole machine is drived by servo motors, which can control the drive system more accurately.

2. Unwinding is controlled by constant tension

3. Can change raw material without reducing the speed

4. Equipped with pneumatic shaft, easy to change raw material

5. Equipped with automatic detecting & rejecting system

6. Web guiders

7. PLC control system

8. stereo fluff core

9. recombination of legcuff & Elastic waistband on line

10. S cutting of side tapes

11. Elastic ears

12. full servo staker & automatic packing

13. recombination of backsheet on line
What materials need to be prepared for the production of baby diaper?
Other raw materials of sanitary pads& diapers available:
1. PE film and cloth-like film materials
2. PP/MAGIC Side/Frontal Tape
3. Hot-melted glue(Spandex/Structure)
4. FLUFF PULP(treated/untreated,SAP)
5. Jumbo tissue paper(Upper/Lower Tissue Papdsxer)
6. Non-Woven (Topsheet-Hydrophilic N.W./ leakage-Hydrophobic N.W.)
7. Spandex
8. Release tape for sanitary napkin
9. Released paper (winged/back of sanitary pad)
10. Sap absorbent paper
11. Outside PE bags/Polybags
12. Elastic waistband
13. ADL
Company Profile
Our Mission: Helping the aged,woman & children around the world.Providing healthy,safe& hygienic quality raw materials.
Our Vision:To be a highly visible,trusted & integrated service company in the hygiene industry, assisting customers to grow at a rapid pace.
Sense of worth:
Customers first, employees second
Be simple, beacuse trust
Make small but daily progress, Quantity Breeds Quality
Achievement customer, Achievement youself
Our Customers
Our Services Excellent After-sales service
1. You can send technicians to our factory to learn operating the machine before delivering machine for 1-2 month.
2.When the machine arrive at your workshop, we will send technician to your workshop to install, test the machine and train your workers
.
3. If you need 1-3 Chinese technicians to work for you, we can help you to find them.
4. Life-long after-sales service for machines.
Why choose us?
1. Quanzhou Niso Industry Co., Ltd. is a professional supplier of raw materials and making machines of sanitary products all in one. It covers an area of 5000 square meters. We have ISO certificate, certificate of utility model patent, patent for invention for machine etc, you can trust we are your best supplier.
2.We can do full support for your complete project, from machine's manufacturing and installment, supplying raw materials, designing your factory layout, workers training to final production.
3.We have served customers from over 100 countries in the world till now.
4.We can offer you very good machines and service at good price. (we have our own parts processing workshop)
5.We are factory manufacturer, not trading company.
FAQ- Frequently Asked Question Q:Are you a machine manufacture or trading company?
A: We are a machine manufacture of baby diaper machine, adult diaper machine, pull on diaper machine, sanitary napkin machine, panty liner machine,underpad machine, pet pad machine, breast pad machine and Underarm pad machine.

Q: What is the delivery time for a set machine?
A: 120 days as a fastest delivery time. As a manufacture, we need time to make our machine perfect in every taspect.

Q: What is your term of payment?
A:T/T is our first choice, L/C at sight is ok as well.

Q: How long is the warranty period?
A: one year after the testing finished at the buyer's workshop.

Q: Will you send the engineer to install machine and train our workers in our factory
A: of course. We will send engineer to installing and training. But the salary and accommodation of technician will be on the buyer' s side. you can sent your engineers to our
factory for training, we will offer accommodation.
Q: How long can I get the machine?
we will begin to make your machine once we receive your 30% down payment.
around 4 month, we will finish the produce and ask the buyer to check the machine and pay for the rest money.
about 10 days for packing the machine, arrangment of shipping and customs clearance.
some days for the shipping and some days for the customs clearance in the buyers country.
Finally, you can get the machine.

Q: Can I buy raw material from your company?
A: yes. we have a trading company, which cooperate with us for many years. we can help you to find raw material.
All your enquiries will be replied within 24 hours!

---
