4lz-6.0 2.2m Cutting Width Farm World Rice Combine Harvester Price

Product Description

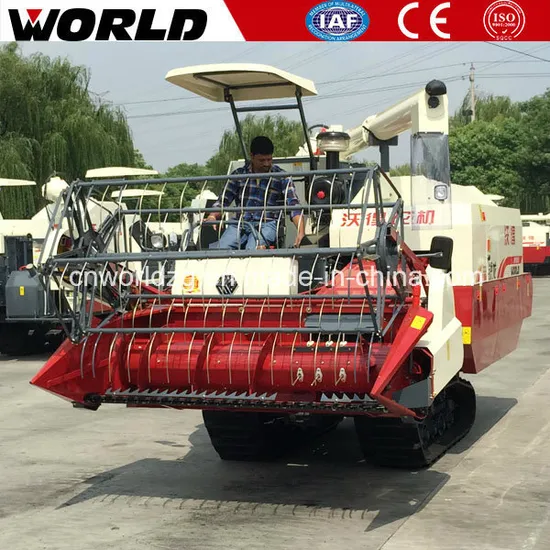

4LZ-4.0E 2.2m Cutting width mini rice combine harvester price
Crawler type combine harvester, 88HP diesel engine, gearbox with hst, 4kg feeding capacity, 2200mm cutting width,
standard sun-roof, air conditioned cabin as optional
Rice and wheat combine harvester with hydraulic gearbox
Main features:
1.Equipped with turbocharged engine 88HP with stronger power and lower fuel consumption.
2.Zkb65 hydraulic gearbox with 40c hst ensures harvester working more smoothly.
3.Rubber track 450X90X51mm brings less ground clearance.
4.The length of threshing cylinder reaches 2050mm, which makes grain less loss.
5.Reverse mechanism is the best solution to solve block of conveyor.
6.Min.Ground clearance reaches 300mm, harvester can work in deep mud fields.
Specifications of 4LZ-4.0E 2.2m Cutting width mini rice combine harvester price

Feeding capacity (kg/s)			4
Work dimension l*w*h (mm)			4900*2890*2700
Weight (kg)			2900
Cabin/sun shade			Sun shade
Engine part	Model No.		Changchai 4L88
	Power/speed (HP/rpm)		88/2700
	Fuel		Light diesel oil
	Fuel capacity (l)		130
	Fuel consumption(kg/hm2)		12~30
	Start		Motor starter
Gear box	Zkb65 made by world factory.
Hst	40cc hst imported from south Korea.
Walking part	Rubber track	Length of ground contact (mm)	1700
		Center distance (mm)	1160
		Size(mm)	450*90*51
		Average contact pressure (kpa)	≤20kpa
	Min.Ground clearance (mm)		300
	Gear shifts		Variable sun-transmission 3 shifts
	Walk speed (km/hour)		Low:0~1.85 medium:0~6.5 high:0~9
	Theoretical work speed (km/hour)		0.9-6.5
Harvesting unit	Grain lifter		Divider
	Working width (mm)		2200
	Reel bat	Dia.× length (mm)	∮900×2028
		Gearshift method	Constant speed
		Adjusting means	Hydraulic
	Stubble height[lift] (mm)		25cm or above
Threshing &cleaning unit	Threshing mode		Axial flow type, bullet rotor
	Threshing rotor	Type of threshing	Beat bar
		Dia.×length (mm)	∮620*2050
		Rotating speed(rpm)	662/732
	Fan	Diameter	∮400
	Separating type		Vibrating sieves +air blow
	Area of sieves (lowe and upper sieves) (m2)		1.645
Grain-unload unit	Grain tank capacity (m3)		1.4
	Grain discharging type		360 degree rotary discharging pipe
Alarm units			Water temperature, battery, oil, grain tank, jam of 2# auger
Work efficiency(hm2/h)			0.4~0.7
Crops			Rice, wheat
Total loss			Less than 2.5%
Breakage			Less than 1.5%
Impurity			Less than 1.5%

Commerical Items
1. Delivery time: 30 days after order
2. Loading: 3 units in a 40HQ container
3. Payment terms: 30% TT on order and balance before shipment
4. Warranty period: one year
5. Technical service: available
6. Operation and maintenance manual(English): provided
7. 4LZ-4.0E 2.2m Cutting width mini rice combine harvester price
Shanghai Yingxin World Machinery Co., Ltd was established in Shanghai which acted as an exporting center of world group. The overseas business was growing very fast in these years. The main exporting machines include:
> wheel loaders with bucket capacity 1.8m3 to 3m3
> excavators from 1.8ton mini excavator to 42ton mining excavator
> some other earth moving machines and road construction machines as road roller, motor grader, bulldozer, backhoe
loader etc
> mechanical press with capacity 6.3ton to 1000ton
> hydraulic sheet shearing machine and bending machine (press brake)
> agriculture machines as farm tractor and combine harvester
> garden tools as lawn mower and tiller etc
World provides high quality machines with reasonable prices. The exporting center can provide warranty, service,
parts and technology support for all world brand machines.
Welcome to visit world facilities and hope you will like world brand machines.
Stay with world, Grow with world. One world, One dream.
agriculture crawler type combine harvester for rice and wheat
Main Features:
1.Equipped with turbocharged engine 64.7kw with stronger power and lower fuel consumption.
2.ZKB65 hydraulic gearbox with 40C HST ensures harvester working more smoothly.
3.Rubber track 450x90x51mm brings less ground clearance.
4.The length of threshing cylinder reaches 2050mm, which makes grain less loss.
5.Reverse mechanism is the best solution to solve block of conveyor.
6.Min. Ground clearance reaches 300mm, harvester can work in deep mud fields.
Specifications:

MODEL		UNIT	4LZ-4.0E
TYPE			FULL-FEED,TRACK COMBINE
ENGINE	MODEL		498BT/BZT/L, 4C6-88M22
	TYPE		WATER-COOLED,4-CYLINDER, DI-INJECTION, VERTICAL DIESEL
	RATED POWER	KW/HP	64/88
	RATED ROTATION SPEED	RPM	2650
	FUEL TANK CAPACITY	L	130
OVERALL DIMENTIONNS		MM	5100x2890x2700
WEIGHT		KG	2800
CUTTING WIDTH		MM	2000/2200
FEEDING CAPACITY		KG/S	4
GROUND CLEARANCE		MM	300
WORKING EFFICIENCY		HA/H	0.5-0.9
TYPE OF BLADE			V TYPE/LEFT AND RIGHT
TYPE OF CUTTING BAR AUGER			SCREW CONVEYING
THRESHING	TYPE		AXIAL FLOW TYPE WITH BEAT BARS
	THRESHING CYLINDER	MM	620X2050
FILTRATE TYPE			VIBRATING SIEVES+CENTRIFUGAL FAN
TRACK	SIZE	MM	400/450/500X90X51
	TRACK GAUGE	MM	1150
TYPE OF GEARBOX			HYDRAULIC TYPE WITH HST

---
