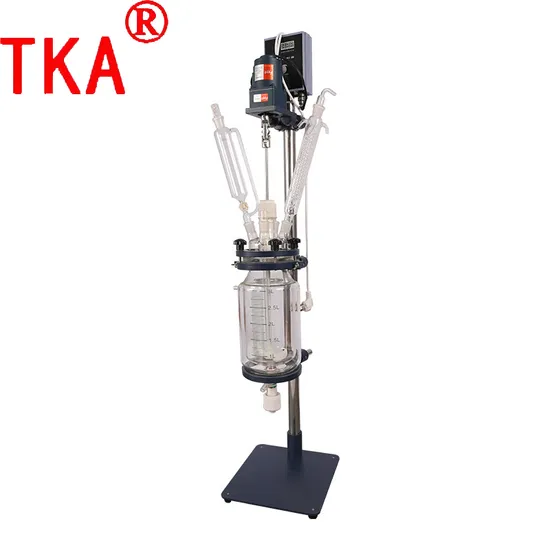

Double Jacket Borosilicate Glass 5 Liter Reactor with Agitator

Product Description

Double Jacket Borosilicate Glass 5 Liter Reactor with Agitator
Product Description Function introduction:
The double reactor is designed as a double-glazed vessel with an inner layer for stirring the reaction medium and a sandwich layer for circulating heating or cooling the reaction with different sources of heat and cold (freezing liquid, hot water or hot oil). Under the set constant temperature, the glass reactor can be stirred under normal or negative pressure according to the requirements of use.
Feature
1. Frequency-controlled, AC induction motor. Constant speed, no brushes, no sparks, safe and stable, can work continuously.
2. The complete set of glass instruments is made of GG17 high borosilicate glass, which has good chemical and physical properties.
3. The glass laminated interface is circulated with hot oil for heating reaction and with freezing liquid for low temperature reaction.
4. The reaction can be carried out at room temperature, and the heat can be quickly removed by passing tap water.
5. With flanged mouth and PTFE valve, there are no dead corners in the vessel and it can be dismantled to facilitate the discharge of solid materials.
6. Five-port reactor lid, extra large port design for easy cleaning, standard port socket for optional assembly of reflux, distillation synthesis device.
Product Parameters

Jackted volume(L)	≈0.8
Voltage/Frequency(V/Hz)	220/50
Glass withstanding temperature(ºC)	-120~300
Up to vaccum level( MPA)	-0.098
Stirring speed(rpm)	0-460
Power(w)	90/EX-plosion proof 180 (Optional)
Neck number of kettle cover	5port(Optional)
Glass Material	GG-17 High borosilicate glass
Temperature measurement tube/reflux port/drip hole/condensation hole	#24
Drop-in	250ml Constant pressure funnel
Stirring Model	Anchor type
Condenser	Vertical serpentine condensing coils
Other	Custom modifications available on request

Packaging & Shipping Package Detail
1) Wooden packing 2) The goods can be shipped by sea, air or train, small goods or spare parts will be shipped by express. 3) You can choose your own freight forwardwe as well. 4) Door to Door Delivery to save your energy and time. We'll take the all risks during transportation.
Shipping Details 1) AMERICA:3-8 working days. 2) ASIAN:3-8 working days. 3) EUROPE:5-10 working days. 4) OCEANIA:4-9 working days. 5) AFRICA:7-13woring day.
Company Profile i'an Taikang Biotechnology Co., Ltd, is a famous manufacturer of Lab equipment located in the central China. Now has TAIKANG, TKA two well-known brand trademarks. The main products include ultra-high temperature and high pressure reactor, high pressure photochemical reactor, supercritical high pressure reactor, high pressure glass reactor, micro high pressure reactor, high pressure ultrasonic reactor, Ultra-high temperature hydrothermal synthesis reactor, photocatalytic reactor, visual catalytic reactor, hydrothermal synthesis reactor, rotary evaporator, parallel synthesis reactor, high and low temperature circulator, high and low temperature high pressure tubular reactor and other equipment and so on.
Specialize in this field for more than 20 years,TKA brand instrument has own high reputation in more than 70 countries and regions, provide technical support for tens of thousands organizations to solve problems within their research, special for university, research institutes, industries, inspection agencies, etc. Promoting technology progress and improving human life is TKA social mission.
Exhibition Show Certifications
FAQ Q1:Are you trading company or manufacturer?
A1:We are professional manufacture of lab equipment and we have our own factory which is a high-tech enterprise integrating R&D, production and sales. And welcome to visit our factory.
Q2: How long is your delivery time?
A2: Usually, delivery time is 30-45 days after receiving your payment.
Q3:How to shipping the replacement parts?
A3:We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.Q4: How about your quality warranty ?
A4: Normally all TKA products are supplied with a warranty of 12 Months from the date of shipment.
Q5: Do you accept OEM and ODM orders?
A5: Yes,We accept.Q6:What is your terms of payment?A6:Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Made in China. you will get 100% payment refund if we can't meet agreed delivery time.)Q7:Can we visit your factory?
A7: Welcome visit our factory.

---
