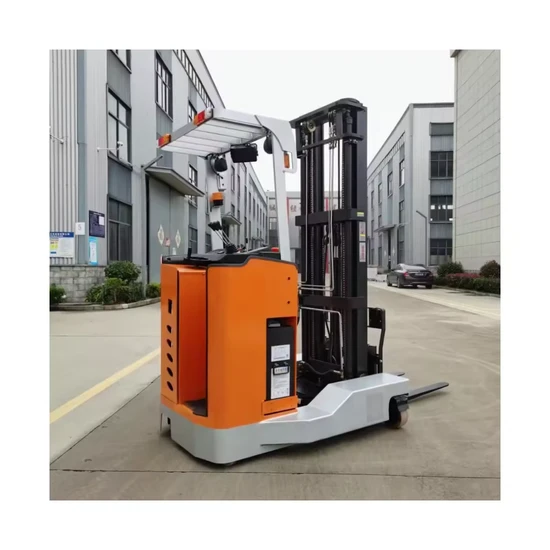

Product Description Hot selling 2t 3m Electric Reach Stacker Stand-on Control Pallet Forklifts Truck CQDS series reach stacker cranes are suitable for large capacity and high lift cargo storage applications. The rated load is 1500Kg-2000kg and the maximum lifting height is 6000mm. It has the feature of moving the gantry forward as a whole, with small turning radius, so that the baffle code at the bottom of the shelves can be ignored. Suitable for large-scale three-dimensional factories, warehouses, supermarkets and wharves to store goods. Product Parameters
| Characteristics | 1.1 | Model | | CQDS10 | CQDS15 | CQDS20 |
| 1.2 | Power | | Electric | Electric | Electric |
| 1.3 | Operation | | Side-standing | Side-standing | Side-standing |
| 1.4 | Rated load capacity | Q(kg) | 1000 | 1500 | 2000 |
| 1.5 | Load center distance | C(mm) | 500 | 500 | 500 |
| 1.6 | The front overhang distance | X(mm) | 145 | 145 | 145 |
| 1.7 | Wheelbase | Y(mm) | 1399 | 1399 | 1584 |
| Weight | 2.1 | Self weight with battery | kg | 2200 | 2200 | 2250 |
| Wheel, chassis | 3.1 | Wheel type | | PU | PU | PU |
| 3.2 | The front wheel specification | ∅×w(mm) | 254*104 | 254*104 | 254*104 |
| 3.3 | Drive wheel specification | ∅×w(mm) | 230*75 | 230*75 | 230*75 |
| 3.4 | Balance wheel specification | ∅×w(mm) | 150*50 | 150*50 | 150*50 |
| 3.5 | The front track width | b10(mm) | 978 | 978 | 978 |
| 3.6 | The rear wheel track width | b11(mm) | 804 | 804 | 804 |
| Dimensions | 4.1 | Height when mast retracted | h1(mm) | 2120 | 2120 | 2120 |
| 4.2 | Lifting height | h3(mm) | 4500 | 4500 | 4500 |
| 4.3 | Maximum mast lifting height | h4(mm) | 5485 | 5485 | 5485 |
| 4.4 | Overhead guard height | h14(mm) | 2308 | 2308 | 2308 |
| 4.5 | Forks height when mast retracted | h13(mm) | 35 | 35 | 40 |
| 4.6 | Mast/forks tilting angle the front/the rear | α/β(°) | 3/5 | 3/5 | 3/5 |
| 4.7 | Overall length | I1(mm) | 2272 | 2272 | 2460 |
| 4.8 | Overall vehicle body length | l2(mm) | 1703 | 1703 | 1888 |
| 4.9 | Vehicle width | b1(mm) | 1098 | 1098 | 1098 |
| 4.10 | Forks dimensions | s/e/l(mm) | 35/100/1070 | 35/100/1070 | 40/122/1070 |
| 4.11 | Forks adjustment dimensions | b5(mm) | 210-705 | 210-705 | 244-705 |
| 4.12 | Forward moving distance | L(mm) | 500 | 500 | 600 |
| 4.13 | Minimum ground clearance (wheelbase center) | m2(mm) | 77 | 77 | 77 |
| 4.14 | Stacking aisle width, pallet1000×1200 (1200 placed cross forks) | Ast(mm) | 2771 | 2771 | 2880 |
| 4.15 | Minimum turning radius | Wa(mm) | 1600 | 1600 | 1781 |
| Performance | 5.1 | Travel speed, full loaded/loaded | km/h | 5/4 | 5/4 | 5/4 |
| 5.2 | Lifting speed, full loaded/loaded | m/s | 0.135/0.115 | 0.135/0.110 | 0.135/0.100 |
| 5.3 | Lowering speed, full loaded/loaded | m/s | 0.085/0.120 | 0.085/0.132 | 0.085/0.140 |
| 5.4 | Maximum gradeability, full loaded/loaded | % | 8/6 | 8/4 | 8/4 |
| 5.5 | Service brake | | Electromagnetic | Electromagnetic | Electromagnetic |
| Motor | 6.1 | Drive motor power | kw | 1.5 | 2.5 | 2.5 |
| 6.2 | Lifting motor power | kw | 3 | 3 | 3 |
| 6.3 | Battery type | | Lead acid | Lead acid | Lead acid |
| 6.4 | Battery voltage/capacity | V/Ah | 24V280A | 24V280A | 24V280A |
| 6.5 | Battery charger | V/A | 24V/40A | 24V/40A | 24V/40A |
| Other | 7.1 | Drive control mode | | AC | AC | AC |
| 8.1 | Driver's ear noise level according to EN12053 | dB(A) | 75 | 75 | 75 |
Detailed Photos Company Profile Q1. What is your terms of packing? A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters. Q2. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated Q3. What is your terms of delivery? A: EXW, FOB, CFR, CIF, DDU. Q4. How about your delivery time? A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order. Q5. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery. Q6: How do you make our business long-term and good relationship? A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
