Welcome to visit

Bath Faucet Tap Mixer Manufacturing Machine Peeling Grinding Milling

US$45,000.00-55,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
RB-F3-0505-Z04-8
Application
Metal, Metal Tube
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001, ISO, CE
Condition
New, New
Voltage
380V
After-Sales Service
Technical Support, Online Support, Spare Parts
Number of Spindle
8
Control System
Syntec/Mitsubishi/Fanuc
Total Power
55kw
Spindle Power
5.5kw
Weight
8t
X Axis Stroke
500mm
Y Axis Stroke
500mm
Z Axis Stroke
400mm
Maximum Speed of Three-Axis Machining
15m/Min
Positioning Accuracy
+/- 0.01/300mm
Repeat Accuracy
+/- 0.01/300mm
Applicable Industries
Bathroom Ware (Eg. Faucet), Hardware, Casting
OEM
Machine Can Be Customized as Required
Lead Time
15days
Function
Engraving and Milling Machine
Transport Package
Export Safety Packing (Customized Packing)
Specification
L3380*W2260*H2410mm
Trademark
RBT
Origin
Quanzhou, China
HS Code
8457300000
Production Capacity
200set/Month

Product Description

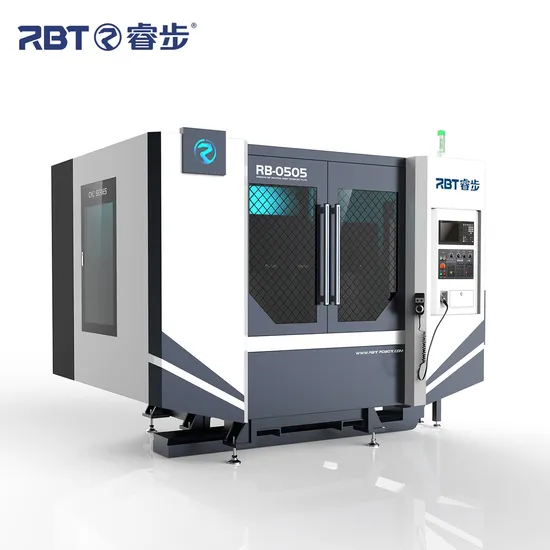

Sanitary Ware Bathroom Faucet Tap CNC Grinding, Peeling, Engraving and Milling Machine
Parameters
Machine Feature 1. The overall body has high strength, annealing and aging treatment after welding, the overall stability of the machine is good, and the accuracy is stable and reliable.

2. Constant and high speed motorized spindle (maximum speed 24000 RPM), high precision, good reliability.

3. Adopt high-precision grinding ball screw rod.

4. Direct coupling connection, transmission rigid, high precision and stability.

4. HIWIN sliding rail from Taiwan is adopted to ensure high precision of machine movement.

5. Adopt timing and quantitative automatic centralized oil supply lubrication system to ensure that any lubricating part can be fully lubricated.

6. Taiwan SYNTEC CNC control system, humanized man-machine operation interface, safety specifications, convenient operation.

7.Nitrogen balance system is used in z-axis of machine to ensure stable and smooth operation.
Application
Suitable for the surface peeling of the bathroom ware (eg. faucet), hardware, casting pieces, car accessory, lock, door knob, jewelry.
Position measurement and calibrition by laser interferometer
WORKSHOP
PACKING & DELIVERY
1.Plastic film packaging and put in plywood wooden cases or according to customer's requirements.
2.Shipping : Container transport.
FAQ
Q1. Where is your factory located ? How can I visit it ?
A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up.
Q2. Are you produce polishing machine's specific parameters according to the samples?
A: Yes, we produce the machine you want by your samples or technical drawings. Usually one machine have different molds and fixtures like metal polishing machine,die casting machine.
Q3. What is your sample service?
A: We can supply the sample testing which client want to produce or the spare parts.
Q4. What is your MOQ of your machine?
A: Normally our MOQ is 1 set.
Q5. Do you test all your machine before delivery?
A: Yes, we have 100% test before delivery.
Q6: How is your development ability?
A: We have a strong engineer team to support the drawing, technology proposal, test and certification; We can customize the machine per customer requirement.
Q7: How about your after sales service?
A:We will arrange our technical staffs to your factory to install machine and teach you how to operate it. During the current special period, we will offer all support online via video 24h per day. Before shipment, we will test machine from and then send all videos from installation to production for customers. Full set of manual and instruction in English will be sent with machine together.
