Microcontroller Training Case Electronics Tech Training Kit Teaching Model Demo Module

Product Description

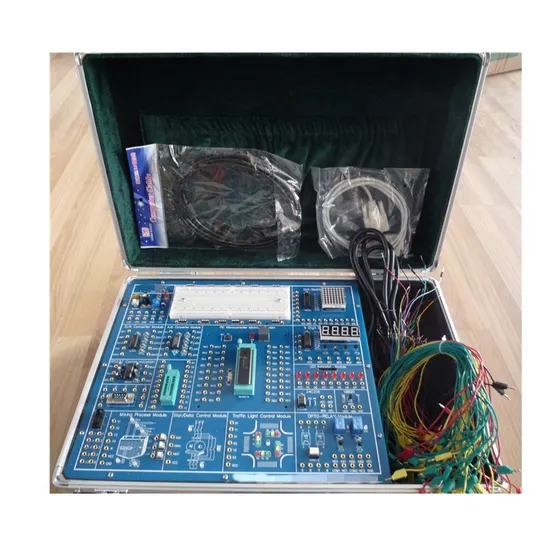

Microcontroller Training Case Electronics tech training kit Teaching model Demo module
PRODUCT INTRODUCTION
Microcontroller Training Set adopts modular design, developed combined the practical issue of current training requirements. It's one kind of basic training device with applicable function,compact structure. This device not only supply basic function experiment module, it can be also do configuration and upgrade for the minimum system module(PIC16F877A,ATMEGA 16A).
TECHNICAL PARAMETER
Working Power:AC110V 60Hz
Whole capacity:≤10W
Working Environment:temperature-10ºC~+40ºC Relative humidity:<85%(25ºC)
Overall Size:280×200×30 mm
Experiment board power supply GND,+5V,+2.5V and 0~+5V interface
PRODUCT STRUCTURE

NO.	Functional Module	NO.	Functional Module
1	Power Module	11	LED Indicator Module
2	Experiment Proto-Board Module	12	AT24C256 Module
3	Dot-Matrix 8×8 Module	13	18B28 Module
4	D/A Converter Module	14	IDC10 Extend Interface
5	A/D Converter Module	15	Mixing Process Module
6	RS232 Communication Module	16	Star/Delta Control Module
7	RS232 Extend Interface	17	Traffic Light Control Module
8	IC Extend Module	18	OPTO-RELAY Module
9	PIC Microcontroller Minimum System	19	AVR Microcontroller Minimum System
10	4 Digit Display Module	20	LCD1602

EXPERIMENT PROJECT
Experiment 1 Flow lights experiment
Experiment 2 Nixie tube display Experiment
Experiment 3 Dot Matrix Screen Display Experiment
Experiment 4 Traffic Light Display Experiment
Experiment 5 Y/Δ Control Experiment
Experiment 6 Liquid Mixing Process Experiment
Experiment 7 RS232 Communication Experiment
......

---
