3w High conductivity thermal conductive gap filler without silicone materials for Set Top Box

Product Details

Product Description

Product Description

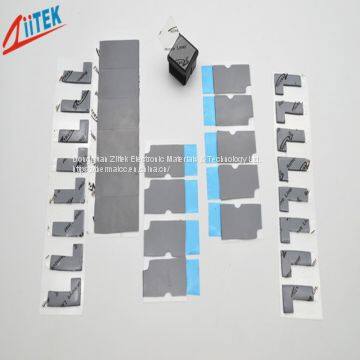

3w High conductivity thermal conductive gap filler without silicone materials for Set Top Box
Z-Paster 140-30-10F Series is a high performance and compatible non-silicone material of the thermal conductive interface materials.The role is to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.
It applies to the liner based on silicone suitably. The flexibility and elasticity make it suited to the coating of the very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.
Features
Silicone-free
ROSH compliance
Good thermal conductive: 3.0 W/mK
Soft and Compressible for low stress applications
Available in varies thickness
Application
Set Top Box
Cooling components to the chassis of frame
Car Battery & Power Supply
Charging Pile
Silicone-sensitive applications
Graphics Card Thermal Module
Medical devices
LED Lighting
SFP optical module
Miniature heat tube radiator

Typical Properties of Z-Paster140-30-10F
Product Name	Z-Paster140-30-10F
Colour	Grey
Construction & Compostion	Silicone-free The metal oxide fills
Thermal conductivity	3 W/mK
Hardness	65 Shore 00
Specific Gravity	2.88 g/cc
Thickness range	0.020"-0.200" (0.5mm-5.0mm)
Dielectric Breakdown Voltage (T= 1mm above)	>5000 VAC
Dielectric Constant	5.5 MHz
Volume Resistivity	6 X1013 Ohm-meter
Continuous Use Temp	– 20 To 125℃
Outgassing (TML)	0.30%
Flame Rating	94 V0

---
