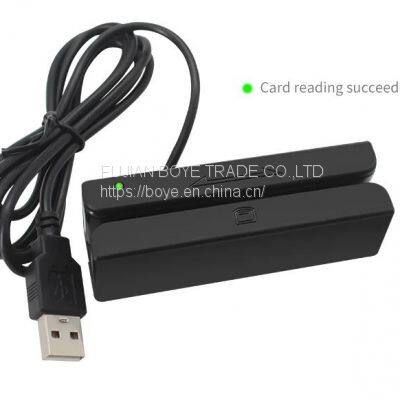

small size Three-track magnetic stripe reader support bi-directional swipe USB magnetic stripe card reader

Product Details

Product Description

Product Description
Standard
ISO7810-7813
Interfac
USB
Tracks
1/2/3 tracks are available
Head Life
≥800,000 times
Material
ABS+PC
Operating Voltage
DC 5V±5%
Operating Current
≤50mA
Status Tips
LED(Optional Buzzer)
Track Width
1.5mm
Product Size
91.4mm*27.6mm*28.2mm
Product Description
Specification

Items	Detail			Items	Detail
Standard	ISO7810-7813			Method	USB
Rate	15~120cm/sec			Head Life	≥800,000 times
Operating Voltage	DC 5V±5%			Operating Current	≤50mA
Status Tips	LED(Optional Buzzer)			Material	ABS
Card Thickness	PVC 0.76±0.08mm			Track Width	1.5mm
Size(Product)	91.4 * 27.6 * 28.2 mm			G W	100G
Size(Package）	138.7 * 67 * 41.4 mm			N W	80G
Indicators	LED and Buzzer			Wire length	1420mm
Remark
Track Position		ISO1(1ATA)	ISO2(ABA)			ISO3(MINTS)
Recording Density		210BPI	75BPI			210BPI
Number of Characters		79	40			107
Operating System		Windows XP、Windows7、Windows10、Android、Linux etc.

---
