Waste Plastic Recycling Machine for Bottle Film/Hot Washing Line

Product Description

waste plastic recycling machine for bottle film/hot washing line
Granulator Line

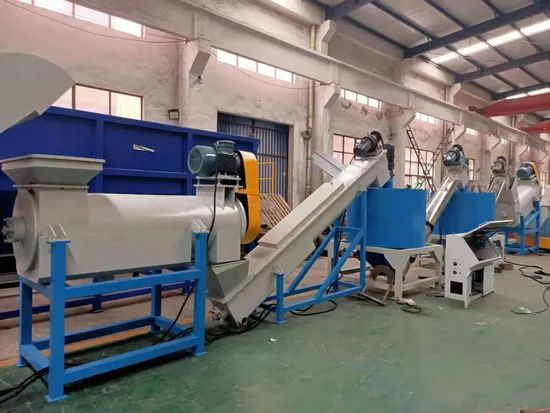

Washing Line
Plastic Recycling
What would you do with an endless supply of plastic? Still struggle with bottle-grade PET recycling, fluffy materials handling ? Let our research into recycling processes work toward a greener future. Contact us today to see what possiblities are in store for your tomorrow.
Streamlined Modern Process Flow
Saving Upto 40% on Energy Consumption Refined Quality in Final Product Individual Solutions Geared Specifically for Recycling Tasks Force Feeding System
Our force feeding system is engineered to accept light weight and fluffy materials. The system can handle scraps of BOPET, PET flakes, or other common scraps.
Our feeding system can be integrated with your dust or margin scraps collection system. This will allow the recycling work to be done online.
Main Extrusion System
Using a single screw extruder, co-rotating twin screw extruder or two stage extruder you can handle recycling a variety of thermal plastics. Defined solutions that meet each meaterials characterists.
During the extrusion process we will find unit value added savings during the material modification, filling, coloring and reinforcement stages.
Melt Filtration System
Melt filtration system can ensure the impurities will be filtered without leakage. This meets various flow character and processing requirements. To ensure the completion of high- productivity high-quality work.
Downstream
Most recycling tasks make granules as a mediate product. For some materials, either pelletizing system or sheet extrusion downstream can be equipped after the recycle extrusion system. In the case of PET bottle flakes recycling it can produce PET pellets and it can make PET sheet directly. This is a branch of our direct extrusion technology!
Layout
500kg/h PP PE Washing Line :

No.	Machine List	Specification
1	Belt Conveyer	1.5 Kw
2	PC800 Crusher	37Kw
3	Friction Loader	11 Kw
4	Downward Screw Loading	1.5Kw
5	Hot Washing Tank by Electrical	5.5Kw+60Kw
6	Washing Tank	2.2 Kw*3
7	Screw Loader	2.2 Kw
8	Centrifugal Dewater	5.5+1.5 Kw
9	Pipeline Drying System	48 Kw+7.5 Kw
10	Electrical Control Cabinet	Delixi Mark

Related Products You May Need:
crusher
Conveyor
Screw Loader
Company information
FAQ: 1. Q: How can we go to your factory?
R:Our factory is located in Nanjing lishui, Jiangsu Province, China,
1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport; about 20 mintues to our company
2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.about 8 mintues to our company
All our clients, from domestic or abroad, are warmly welcome to visit us!
2. Q: Why chose us?
R: 1)Quick reply. Once we received the inquiry from ******, we will reply you within 24hours.
2)Quick manufacturing time. To guarantee the quality, the machine will be finished within 60days.
3) Before delivery, the machine will be tested to ensure every part is ok.
4) Wooden case package to ensure no damage during shipping.
3.Q:What is the payment?
R: 1) T/T payment; 2) LC;

---
