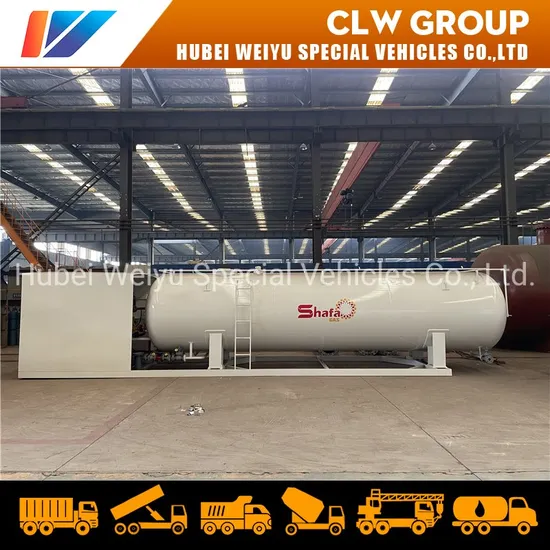

20000 Liters 20cbm 10tons LPG Skid Station Mobile LPG Gas Plant with Cylinder Filling Scales and Flow Meter

Product Description

20000 Liters 20cbm 10tons LPG Skid Station Mobile LPG gas plant with cylinder filling scales and flow meter
Description
LPG skid station volume: 20 m3, 20 cbm, 20000 L, 20000 liters; LPG skid plant tank diameter: 1800mm, 2100mm, 2000 mm, 2200 mm, ; LPG Filling skid Station tank material: Q345R, Q370R; Accessories: LPG dispenser , LPG pump, Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, other pipe etc. Designing pressure:1.77 Mpa Designing temperature: -20 °C to 54 °C. The various types LPG tanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity, light weight and high efficiency. We inspect the quality of product strictly, ensure that A and B type of welding seam pass the examination of level two radiographic test, C and D type of welding seam pass the examination of level one radiographic test. There are high safety domestic or imported safety accessories for customers option. The anti-corrosion coating of LPG tanker adopt the following process, sandblast, spray painting, purging and so on Competitive Advantage:
Factory direct sales, fast delivery Lowest price comparing the same quality High Quality, good performance, 18 months warranty, main beam whole life time grantee! ISO, CCC, SGS, ASME certificates
Specifications

Volume of Tank	20CBM(20,000liters) 10tons
Filling Weight	10000 kg
Tank Weight	5050 kg
Thickness of Shell (mm)	12 mm
Thickness of Endplate (mm)	12 mm
Tank Diameter (mm)	2100 mm
External Dimensions (mm) (length x width x height)	6154*2124*2714mm
Material of Tank and Main Pressure Parts	Carbon Steel Q345R
Filling Medium	Liquefied Petroleum Gas ( Propane)
Design Pressure	1.77 MPa
Corrosion Allowance	1 mm
Medium Density	420kg/cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.

Accessory list for lpg storage tank Filling Station

Item	Model	Unit	Quantity
Pump	YQB15	Unit	1 or 2
Electric Motor	YB3-200L	Unit	1 or 2
Float-operation hydraulic level gauge		Piece	1
Safety valve	DN50	Piece	1
Safety reverse valve	DN50	Piece	1
Check valve	DN50	Piece	2
Stop Valve	DN50	Piece	1
	DN32	Piece	1
	DN25	Piece	4
	DN20	Piece	2
	DN15	Piece	2
Flexible Hose	L=4M DN50/25	Set	1
Shock-proof pipe	L=500mm DN50	Piece	1
Filling Gun hose	L=2M	Set	3
Elbow Cap	DN65	Piece	2
	DN50	Piece	10
Flange	2.5MPaDN65	Piece	1
	2.5MPaDN50	Piece	10
	2.5MPaDN32	Piece	1
	2.5MPaDN25	Piece	8
	2.5MPaDN15	Piece	10
Metal gasket	DN65	Piece	5
	DN50	Piece	10
	DN32	Piece	2
	DN25	Piece	10
	DN20	Piece	2
	DN15	Piece	30
8.8 degree bolt	16*70	Set	100
	12*55	Set	100
Dispenser or filling scale	Single nozzle/double nozzle	Unit	1 or 2
Base Plate		Set	1
Gas Leak Detector		Unit	1
Water Sprinkler System	Manual Operation	Set	1

Reference Photos
Production Process of Tank
Gas plant and accessories
Dispenser way
Factory overview
Successful cases
Other related LPG products
Customer Inspection
Overseas Exhibition and After-sales Service
LPG Products Warranty
1. One year free warranty for LPG pump, compressor and filling scales.
2. Transportation warranty: our company offer Transportation insurance for customer. To ensure customer's products arrived at destination safely.
Truck Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship

---
