Fully Automatic Waste Tire Recycling Line Machine Directly From Factory

Product Description

Whole Tire Shredder, Whole Tyre Shredding Machine, Tire Shredding ZPS-900
Use:
Cut the waste tires (removed wire loops) into several parts.
The cutter machine is made up of motor, hydraulic system, oil cylinder, one pair of blade, frame and rotating body etc.
The basic principle is: motor drives hydraulic system and the cylinder, place the tire to lock arm, fasten two blades rotating between tire and shear cylinders work to move, two blades rotating blades forming shear, achieve the effect of shear.
Feature:
This equipment of good shear effect, shearing speed, low energy consumption, small volume, convenient, because use the hydraulic system, easy operation and safe.
Mechanical description: the tires more than 800 need to cut, and cut into four pieces in general .the size of piece is 200-500mm.
Notes for using tire cutter:
a. Inspect the knives frequently, if appear obvious blunt, it should be maintain timely, and the service is 2-3 years.
b. the oil in hydraulic station should be filtered and changed regularly. Generally filter once every one and half year.
c. Wearing parts: rubber seals, delivered with another set when ship the machine to the buyer.
Our company produces a full set of waste tyre recycling machines, which are used for making rubber powder from old tyres, like rail tyres, engmeenng tyre and other old tires. It can produce 20 - 80 mesh rubber powder.

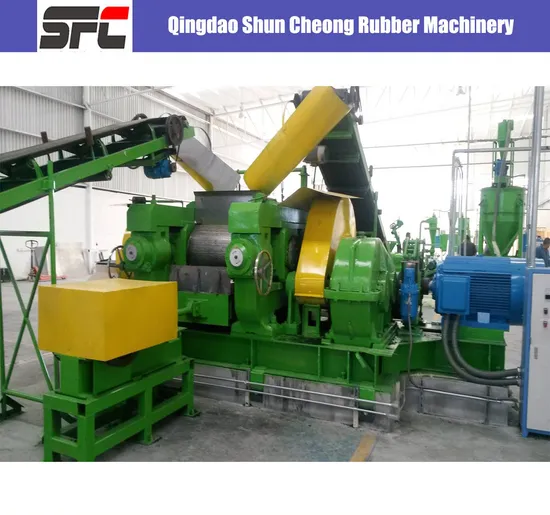

1. This Waste Tyre Recycling Line including main machine and accessorial equipment, it is used for recycling scrap-tire (steel tyre and textile tyre), the final product is rubber powder or reclaimed rubber
2. The magnet separator and granulator grinder for Waste Tyre Recycling Line is optional.
3. The whole line is easy to operate, only need 3-4 workers to operate.

No.	Name	Model	Qty. (Qty)	Motor Power (KW)
1	Single hook debeader	LSJ-1200	1	11
2	Whole tyre cutter	QDJ-1200	1	5.5
3&4	Whole tyre shredder (with conveyor)	ZPS-900	1	61.5
5	Double Rolls Rubber Crusher	XKP560	1	75
6	Big conveyor equipment	BCL-8	1	2
7	Small conveyor equipment	BCL-3	1	1.1
8	Big Magnet separator	BMS22	1	2.2
9	Small Magnet separator	SMS-1	1	1.1
10	Big Shaking screen	BSS-8	1	7.5
11	Small Shaking screen	SSS-3	1	3
12	Fiber separator	FS110	1	5.5
13	Fine Rubber Powder Pulverizing Machine	XJFS-420	1	29.25
14.	Vibrating screen		1	0.75

---
