Quality Supplier 502 Glue White Latex Vacuum Chemical High Pressure Reactor

Product Description

1) Reactor is the main chemical reaction of the typical production equipment .which is widely used in resins adhesives paint cosmetics pharmaceutical and other chemical production.
2) To break down or combined the materials through mixing, filling and cooling to promote the reaction of polymerization.

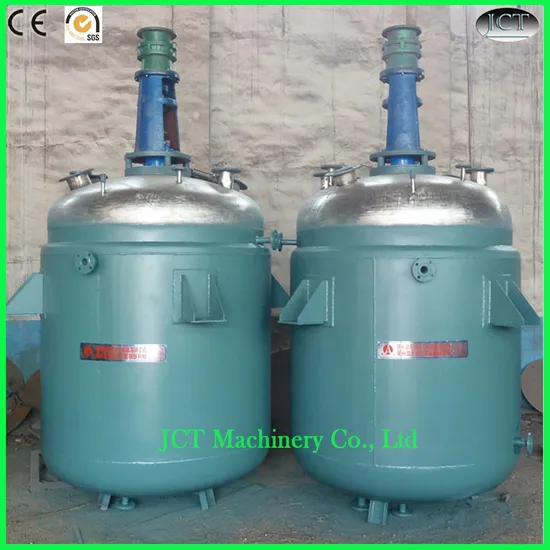

3) The reactor consists of body, gears mixing devices heating devices cooling devices seal composition.
4) Corresponding auxiliary equipment: distillation column condenser water separator collecting cans filters ect.
Production process In view of the principle of confidentiality for customers, the following can only briefly describe the process.
1.The liquid material is added from the liquid feed port on the top of the reactor, and the powder material (or slurry) is also added to the kettle through the manhole under the protection of a dust collector.
2.Stir in the kettle with a paddle mixer.
3. With the rotation of the paddle mixer, the liquid material and the powder material (or slurry) are gradually mixed uniformly.
4. When the materials in the kettle meet the quality requirements, open the bottom valve of the kettle. The finished material is discharged to the finished tank.
5.Fill from the finished product tank to the filling machine.
Market prospects Design capacity 50-30000L(volume in accordance with the requirements of the design)
Reaction temperature room temperature-300ºC
Reaction pressure -0.1~0.6Mpa
Equipment materail SUS304 stainless steel,SUS321 stainless steel ,SUS316,Q235-B carbon steel
Stirring form --anchor paddle ,block ,ribbon ,turbine tybe,a dispersing disc,modular like,
Heating methods electric heating ,steam heating ,heated in water
Heat transfer medium oil,steam,hot water,electricity and heating
Heat transfer structure jacket,outer half -tube,inner coil type

model	nominal capaci	actual capci	heating power	jacket capaci	inner pot size	jacket size	hole center	volume
50L	50	78	2*4	96	400	600	828	10
100L	100	127	2*6	127	500	700	928	15
300L	300	327	4*6	218	800	1000	1148	20
500L	500	509	4*9	269	900	1100	1252	25
1000L	1000	1017	4*12	400	1200	1400	1588	40
2000L	2000	2154	4*15	850	1400	1600	1840	80
3000L	3000	3201	5*15	1015	1600	1750	2040	100
4000L	4000	4020	5*15	1226	1600	1750	2070	120
5000L	5000	5170	5*18	1400	1800	2000	2320	140

Stirring or Mixing System: Many chemical reactions require thorough mixing of reactants to ensure uniform contact and reaction rates. Agitators, impellers, or mechanical stirrers are often used to achieve this mixing.
Product Parameters 1). Unsaturated resin, alkyd resin, acrylic resin, polyester resin, curing agent and complete sets of production equipment.
2). Emulsion, white latex, water-based polyurethane, water-based glue sets of production equipment.
3). 107 rubber, silicone oil, anc other sets of production equipment, hot melt adhesive.
4). Complete sets of production equipment.
5). PU glue, adhesive, grafted gum syrup glue sets of production equipment.
6). Complete sets of raw rubber production equipment.
7). Waste silicone cracking, distillion, recycling sets of production equipment.
8). Dispersion paints, coatings, stirring and mixing equipment.


Packaging & Shipping
Company Profile
FAQ
Q : Can you send the formula for the products we want to make ?
A : Our machines can be used for many kinds of product making ,such as Resin , Paint, Adhesive , Cosmetic , Food , Chemicals . There are many kinds of these products , so it's impossible for us to know all the formulas and technologies. We can assist you to find the raw material list you need , and after you place order with us , we can help you to find formula and technology , there will engineers to teach you how to make the product , and the cost will be on your account.
Q : Do you have machines in stock ?
A : Yes , but just the small-scale machines Machines are different with other products , most of the large-scale machines are designed according to our customers 'requirements different customers have different production requirements , so the technical parameter is different for most machines On the other hands , most of the our machines will cover a large area , so once the machines are finished , we will effect shipment after QC .
Q : Can you send the detailed drawings of the machine to us before we place order ?
A : We can send you a draft drawing of the machines , and after you place order and pay the deposit , our engineer will design the send you the detailed drawings . Once you confirm without questions , we will put it into production.
Q : Why does it take at least 20 days to finish the machine ?
A : Once receipt the deposit from you , we will design the drawings and make out the list of the materials and accessories for the production . Once the drawings are finished , our workers will start the production , from welding , polishing , assembling debugging , detection and so on . After finish , they need time to check the machines , if found any possible defect parts , they will return to the production until every part is 100% approved.

---
