High Click Oil Immersed Type 1000 kVA High Voltage Transformer 220V/380V/400V to 10.5kv/33kv/35kv/66kv Oil Immersed Power Transformer Price

Product Description

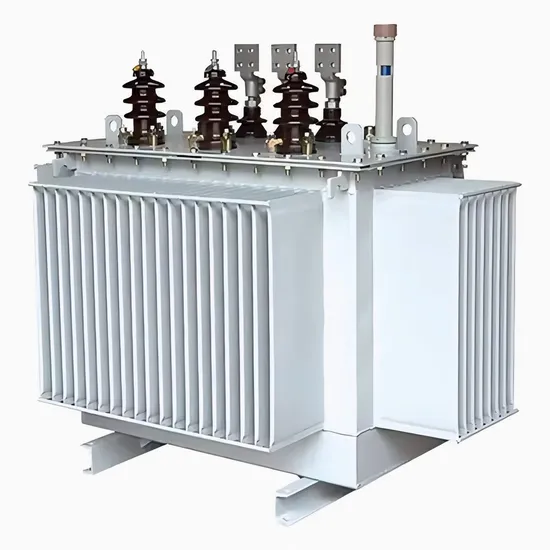

Product Description Oil Immersed 3 PhaseTransformer
The fully sealed oil immersed power transformer adopts the fully oil-filled sealed type. The corrugated
tank shell is apermanently sealed tank with its elasticity adapting to the expansion of oil,can adapt to
a variety of outdoor harsh environment ,which has been widely used in various power distribution
equipment.
Product Features
Low noise: compact design structure, application of new materials and new technology, reduce noise, no oil storage tank, lower height than similar products. Reliable long-term service life: The fully sealed power transformer case cover and the tank rim are bolted welded to isolate the contact between oil and air. Small size and beautiful appearance: oil transformer series of transformer oil tanks use corrugated plate fins. When the oil temperature changes, the change in oil volume is adjusted and compensated by the elastic expansion and contraction of the corrugated sheets. The corrugated fuel tank is beautiful in appearance and small in size, with a small footprint. Maintenance-free: Oil immersed Outdoor Distribution Transformer,the fully sealed transformer does not require maintenance. Product Parameters When placing order, please provide the following technical parameters
1. kV rated voltage: 2. rated voltage; 3. Combination of three levels, accurate phase and accurate; 4. rated output, and the corresponding accurate level (VA).

Model number	Rated capacity(kVA)	Join group label	Voltage combination>(kV)			No-load loss(W)	Load loss(W)	No-load current(%)	Short circuit impedance(%)	Dimensions(mm)			Weight(kg)		Gauge(mm)
			High tension	Tapping range	Low pressure					L	W	H	Oil	Weight
S11-M-30	30	Yyn0 or Dyn11	6 6.5 10 10.5 11 20 30	±5% or ±2×2.5%	0.4	90	600	2.3	4	740	665	875	74	283	400*500
S11-M-50	50					120	870	2		770	675	965	88	362	400*500
S11-M-63	63					140	1040	1.9		820	700	1020	112	442	450*500
S11-M-80	80					180	1250	1.9		835	705	1040	117	481	450*500
S11-M-100	100					200	1500	1.8		850	715	1055	122	520	450*500
S11-M-125	125					240	1800	1.7		1180	740	1115	154	667	500*500
S11-M-160	160					280	2200	1.6		1225	775	1175	176	788	500*500
S11-M-200	200					340	2600	1.5		1245	790	1195	193	898	500*500
S11-M-250	250					400	3050	1.4		1340	880	1230	209	1027	550*500
S11-M-315	315					470	3650	1.4		1425	935	1260	234	1177	550*500
S11-M-400	400					560	4300	1.3		1470	955	1330	265	1399	550*600
S11-M-500	500					680	5100	1.2		1490	960	1405	283	1576	550*600
S11-M-630	630					840	6200	0.9	4.5	1585	1030	1370	317	1771	660*660
S11-M-800	800					980	7500	0.8		1675	1090	1480	366	2128	660*820
S11-M-1000	1000					1150	10300	0.7		1775	1175	1530	402	2379	660*820
S11-M-1250	1250					1360	12800	0.6		1965	1155	1700	542	3023	820*820
S11-M-1600	1600					1640	14500	0.6		2055	1210	1800	616	3591	820*820
S11-M-2000	2000					1950	18500	0.5	5.5	2090	1280	1930	950	2830

Applicable Environment High ambient temperature: +40ºC Low ambient temperature: -25ºC Altitude: <1000m Monthly average relative humidity: 90% (20ºC) Installation location: used in chemical plants, factories, remote places and harsh environment. Production Process
Our Advantages Detailed Photos Our Factory
Certifications

Packaging & Shipping Our regular packaging: wooden boxes or customized support. We support multiple transportation methods, transportation costs, and the most suitable
transportation method for you. You can click here to contact us and help you check.
FAQ 1. Q: Are you a trading company or manufacturer?Are OEM and ODM available?
A: We are a factory with more than 10 years experiences.
2.Q:Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A:We have a product catalog. Please contact us online or via email to request a copy.
3. Q:What about the production?
A:In general,it take 25 working days for production and it depend on the different style.
4. Q: Do you have the products in stock?
A: Depending on your request,we have standard models available.
5. Q: How can I pay you?
A: Pay by T/T and L/C is acceptable.6. Q: Can I get guarantee of products and How do you solve quality problems?
A: Every product comes with a 1 year quality warranty, provided the products are used correctly by
the customer. Please provide detailed photos of quality problems, Our technical and quality testing
department will analyse.We will make a satisfied solution within 2 days.

---
