Basic Info.
Width of Production Line
4,6,7,8,9 Feet
Final Board Thickness
0.8~20 mm
Final Board Width
915~2800 mm
Final Board Length
1830~5490 mm
Press Speed
Max. 2500 mm/S
Transport Package
Wooden Package
Production Capacity
300~1500 M3/D
Product Description
Main characteristics
The ability of system design and project organization. We can provide the solution of production line and all the equipment; The equipment of production line is easy to use. We also provide service of operation and management to our customers; Our equipment also owns stable quality, reliable operation and low-frequency maintenance because of the ability of manufacture and quality guarantee; Saving of raw material and energy consumption based on reasonable hydraulic press and heat distribution; The advanced control system with intelligent method and remote monitor. Summary of process flow
Economic and technical data
| Item | Unit | Specification |
| Capacity | m³/d | 300~1500 |
| Width of production line | feet | 4,6,7,8,9 |
| Final board thickness | mm | 0.8~20 |
| Final board width | mm | 915~2800 |
| Final board length | mm | 1830~5490 |
| Press speed | mm/s | Max. 2500 |
Key equipment
Drum Chipper
The drum chipper is the special equipment for producing perfect chips. It is used in paper plant, particle board plant, fiber-board plant and chips bases. By which, logs and small wood are cut into high quality chips with even length and uniform chip thickness, it is also suitable for the chipping of branches and twigs, planks and etc. The chip length is different in accordance with the requirement of paper plant, particle board and fiber-board industries, so in order to meet this need, our company improve different kind of drum chippers recently, and the new type machine has more advantages. All the features show that it is an ideal equipment for chip production which can be uses all over the world.
| Speciifcations/Model | BX2113/13 | BX2116 | BX2120 |
| Rotor diameter (mm) | 1300 | 1600 | 2000 |
| Number of rotor knives (pieces) | 4x2 | 4x2 | 3x2 |
| Feed opening (mm) | 400x1250 | 600x1250 | 850x1250 |
| Max diameter of raw material (mm) | 250 | 310 | 370 |
| Chip length (mm) | 30 | 30 | 35 |
| Capacity (m3/h) | 132 | 185 | 190 |
| Main drive motor power (kW) | 450 | 710 | 1000 |
| Feed roller motor power (kW) | 11x2 | 18.5x2 | 22x2 |
| Pump motor power (kW) | 2.2 | 4 | 3 |
| Machine net weight (kg) | 20540 | 32000 | 55000 |
| Overall dimension/LxWxH (mm) | 5484x5400x1860 | 4360x3150x2200 | 7970x7150x2750 |
Refiner
Pressurized refiner adopts the patents and combined international advanced technology. The technical data and performance are close to the advanced level of world-famous similar products. The refiner has advanced structure, high automatic and easy operation, reliable and precision running, which can produce high quality fiber with lower moisture.
Pressurized refiner can be used for MDF/HDF production line with capacity range from 30,000 to 300,000cbm per year.
| SN | Item | Model | 45/48 | 50/54 | 54/58 |
| | | Cacacity(ton/h) | 13-18 | 20-26 | 26-30 |
| 1 | Feeding screw | Diameter(mm/inch) | Φ406/16 | Φ475/18 | Φ500/20 |
| 2 | | Motor power(kW) | 406(DC) | 450(DC) | 550(DC) |
| 3 | Size | Output diameter(mm) | Φ1175 | Φ1370 | Φ1600 |
| 4 | | Height(mm) | 9000 | 9000 | 9000 |
| 6 | Motor power of conveying screw(kW) | 45(DC) | 75(DC) | 75(DC) |
| 7 | Size of conveying screw(inch) | 16 | 18 | 20 |
| 8 | Main motor power(kW) | 3000-3550 | 4000-4500 | 4500-5600 |
| 9 | Diamteter of refiner segment(inch) | 45,48 | 50,52,54 | 54,58 |
| 10 | Seal of main shaft | Mechnical seal | Mechnical seal | Mechnical seal |
Dryer and Energy Plant
Forming Station
The forming head consists of 42 needle rollers and blade rollers. The rotation speed and direction of the forming head rollers are adjustable. They convey and distribute the fibre homogeneously on the forming belt.
| Forming width: | 2,700 mm |
| Min. Forming density: | 25 kg/m³ |
| Volume of the fiber bin: | 100 m3 |
| Forming capacity: | 1,700m3/h |

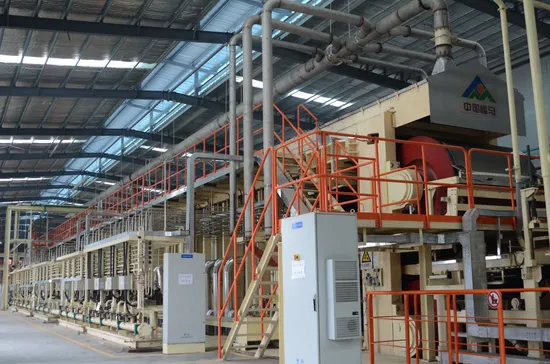

Continuous Press
Convert the mat into master board under the heat and pressure.
| Heating plate length: | 20,000 mm |
| Heating plate width: | 2,650 mm |
| QTY of press frames: | 24 pcs |
| Steel belt width: | 2,670 mm |
| Steel belt thickness: | 2.8 mm |
| Roller rod length: | 2,700 mm |
| Roller rod diameter: | 20 mm |
| Steel belt driving drum diameter: | 2,040 mm |
| Feeding belt nose roller diameter: | 12 mm |
Sanding and CTS Line
This production line consists of two parts: sanding and cut-to-size line, used for sanding and cutting of board with a size of 8 feet by 20 feet.
In this production line, the sanding line and the CTS line can be connected for continuous operation, and the sanding line can also work independently. Under normal circumstances, the sanded board is stacked into a maximum stack of 210mm by a pre stacker and fed into a longitudinal feeder for longitudinal and cross cutting saw.
| Panel Type | MDF/HDF |
Product thickness range (master board):
| 0.8~40 | mm |
Length and width range (master board):
| (2480~2550) x (3700~6200) | mm |
Size of panel after cutting:
| (4/6/7/8) x (6~12) | feet |
Working height of sanding line:
| 2600 | mm |
Stacking height of master board:
| 3500 | mm |
Stacking height of final board:
| 1250 | mm |
Feeding method:
| Satellite trolley | |
Discharge method:
| Forklift | |
Configuration for sanding machine:
| 4+4+P with 8 feet | |
Max. working speed:
| 120 | m/min |
Diameter of saw blade:
| 730 | mm |
Cutting height:
| Max. 210 | mm |
>>
