3HP Electric Water Pump Motor Prices in Pakistan High Quality Sample Customization

Product Description

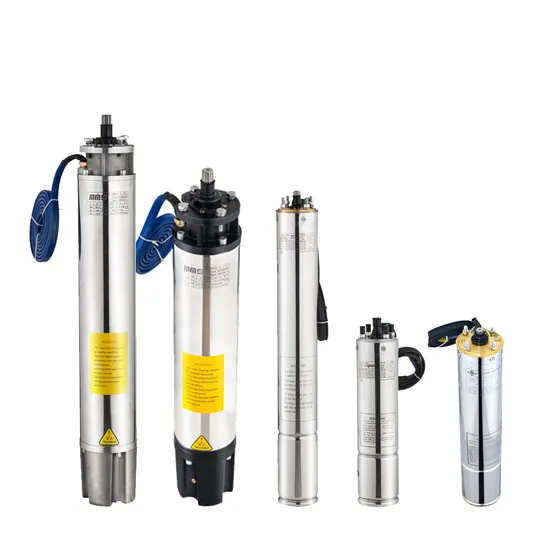

6 Inch 380V 50HZ Stainless Steel / Cast Iron Submersible Motor

4"single phase oil-cooled submersible motor (220 V ±5% 50Hz 60Hz)
MOTOR POWER		CURRENT	POWER FACTOR	CAP	SPEED	LENGTH	WEIGHT
HP	KW	A	COSФ	u F	rpm	mm	kg
0.33	0.25	2.8	0.86	15	2850	320	5.6
0.5	0.37	3.2	0.88	20	2850	364(335)	7.4
0.75	0.55	4.5	0.89	25	2850	384	8.4
1	0.75	6.0	0.90	30	2850	409	9.6
1.5	1.1	9.0	0.90	40	2850	439	11
2	1.5	10.3	0.94	45	2850	474	12.6
3	2.2	14.6	0.96	60	2850	553	14.7

4"three phase oil-cooded submersible motor (380V ±5% 50Hz 60Hz)
MOTOR POWER		CURRENT	POWER FACTOR	SPEED	LENGTH	WEIGHT
HP	KW	A	COSФ	rpm	mm	kg
0.5	0.37	1.2	0.68	2850	371	7.5
0.75	0.55	1.6	0.68	2850	390	8.4
1	0.75	1.8	0.70	2850	410	8.9
1.5	1.1	3.1	0.72	2850	420	9.7
2	1.5	4.0	0.74	2850	445	11.2
3	2.2	5.6	0.76	2850	578	13.8
4	3	7.6	0.77	2850	649	18.2
5.5	4	9.6	0.79	2850	714	21.5
7.5	5.5	14.0	0.80	2850	814	26.5
10	7.5	16.5	0.80	2850	949	32.4

6"three phase oil-cooled submersible motor (380 V ±5% 50Hz 60Hz)
MOTOR POWER		CURRENT	POWER FACTOR	SPEED	LENGTH	WEIGHT
HP	KW	A	COSФ	rpm	mm	kg
5.5	4	9.3	0.79	2850	631	27.4
7.5	5.5	13	0.8	2850	691	32.3
10	7.5	16.5	0.8	2850	721	38.2
12.5	9.2	21	0.81	2850	781	41.1
15	11	24	0.81	2850	781	42

6"three phase water-cooled submersible motor(380V 50Hz 60Hz )
MOTOR POWER		CURRENT	POWER FACTOR	SPEED	LENGTH	WEIGHT
HP	KW	A	COSФ	rpm	mm	kg
4	3	7	0.78	2850	701	40
5.5	4	10	0.79	2850	732	43
7.5	5.5	13	0.8	2850	769	48
10	7.5	16.5	0.8	2850	804	50
12.5	9.2	21.5	0.81	2850	834	53
15	11	25.5	0.81	2850	956	68
17.5	13	31	0.81	2850	996	76
20	15	34	0.81	2850	1046	86
25	18.5	38	0.81	2850	1166	94
30	22	43	0.81	2850	1241	101

Full Family:
3" oil-cooled submersible motor (220V 50Hz 60Hz)
4" oil-cooled submersible motor (220V/380V 50Hz 60Hz)
6" water-cooled submersible motor (380V50Hz 60 Hz)
3" submersible pump
4" submersible pump
6" submersible pump
Characteristic * Conform to international standard of IEC34-ICE, whole blocked asynchronous motor.
* Outer shell.shaft and lower motor cover made of stainless steel.
* Stainless steel upper motor cover.
* Pressure automatic adjusting device made of oil and waterproof reinforced buty1-rubber.
* Flange connector under the standard of NEMA(USA National Electrical Manufacturing Association).
* Lacquer-coated wire conformed to USA standard of NEMA37-C.
* Assure double safety by using the unique released high pressure device. Specification FAQ: Q: What is your MOQ of this item? A:50PCS/type Or 100 PCS/type,we can accept the trial order,please contact our sales firstly. Q: Is it acceptable to make customers' own brand? A: Sure, we can do OEM. Q:Are you a factory or a trading company? A:We both have factory and trading company, so you needn't worry about the production of goods. Q: What are your payment terms? A: 30% T/T deposit, 70% against documents, or L/C at sight. Q: How long is your warranty? A: One year. Q: What's your delivery time? A: 1.The samples can be sent to you within 3-5days.
2.The batch order can be shipped to you within 25-30days after order confirmation

---
