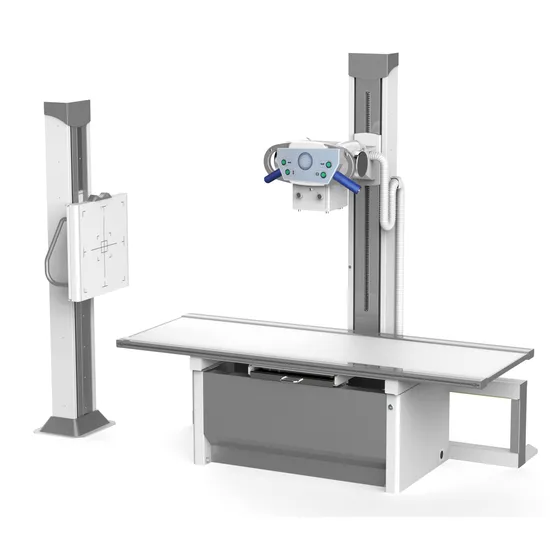

Analogue High Frequency X-ray Radiography Medical Equipment 500mA

Product Description

Analogue High frequency X-Ray Radiography Medical Equipment 500mA

Rich DR upgrade reserve interface
Fault self-diagnosis and protection
Automatic calibration of tube current
X-ray tube has the function of filament dormancy
AEC function, different ionization chamber as optional
Analog - digital double - loop control, simple operation, high intelligence
High kV, high current, high power,strong penetration,able to handle obese patients
Applicable to orthopedics, emergency room, operating room, etc.,
As human head, limbs, chest, spine, lumbar spine for medical diagnosis

X-ray generator

Main Component Technical Spe.
X-ray generator (include console)	Output Power	50KW
	Power Voltage	380V±38V
	kV range	40~150kV
	mA range	10~630mA
	mAs range	0.1 ~630mAs
	Exposure time	0.002~6.3S
X-ray tube	Anode Heat Storage Capacity	240kHU
	Small focus	0.6
	Large focus	1.2
	Anode speed	3000r/min
Collimator	Inherent filtration	1.0mm Al /75kV
	Light Source	LED
Radiographic Table	Top Table Size	2100X800X650mm
	Bucky Size	18X18inch
	Table longitudinal movement	≥900mm
	Cassette Movement Distance	≥500mm
Vertical Chest stand	Vertical moving range	≥1200mm
	Bucky Size	18X18inch
Double Grid	Size	18X18inch
	Ratio	1:1
	F.D.	100cm
	Density	40 L/cm

---
