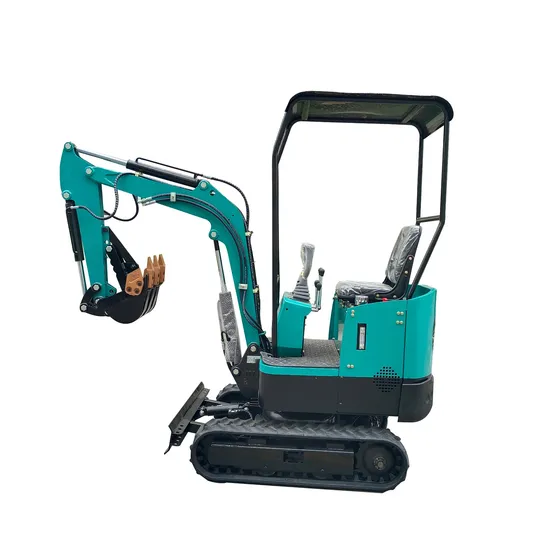

The mini excavator adopted the KOOP engine with EURO V emission, the machine installed the hydraulic hammer pipeline for you to use the hydraulic hammer, compact, light and small return radius, are its unique structural features.
| Engine | Travel System |
| Model | KOOP( KD192F-1) | Travel motors | SMT310 |
| Type | Direct injection, air cooled, natural intake | Support roller quantities | 2×2 |
| Carrier roller quantities | 0 |
| No.engine cylinder | 1 | Travel speed | 1.9(km/h) |
| Bore and stroke | 92x75 | Drawbar pulling force | 8.3KN |
| Displacement | 0.499 | Gradeability | 58%(300) |
| Power output | 7kw/3000rpm | Rubber track width | 180mm |
| Max. torque | 27N.m/2200rpm | Rubber track Thickness | 40mm |
| Hydraulic System |
| Pump | 2ZGPA0D6S0L0 |
| Type | Gear pump |
| Max. discharge flow | 18 (L/min) | |
| Max. discharge pressure |
| Boom, arm and bucket | 16MPa | Voltage | 12V |
| Travel circuit | 16 MPa | Batteries | 1X12V |
| Swing circuit | 16 MPa | Battery capacity | 45Ah |
| Main control valves | DL80 |
| Oil cooler | Air cooled type |
| Swing System | Refilling Capacity & lubrication |
| Swing motor | OMR200 | Fuel tank | 7L |
| Swing motor type | gerotor motor | Cooling system | No |
| Brake | No | Engine oil | 1.2L |
| Parking brake | No | Hydraulic oil tank | 14.5L Oil Tank Level |
| Swing speed | 13 r/min | 21.5L Hydraulic System |
| Bucket |
| Type | Backhoe bucket |
| Bucket capacity | 0.023m3 |
| Number of bucket teeth | 3 |
| Bucket width | 400 mm |
| Working ranges | |
| Boom length | 1480m |
| A | Max. digging height | 2550mm |
| B | Max. dumping height | 1687mm |
| C | Max. digging depth | 1787mm |
| D | Max. vertical digging depth | 1626mm |
| E | Max. digging distance | 3077mm |
| F | Max. digging radius at ground level | 2992mm |
| G | Min swing radius of work equipment | 1483mm |
| Digging Force |
| Arm length | 800mm |
| A | Bucket digging force | 7.2 KN |
| B | Arm digging force | 4.6 KN |
| Overall Dimensions |
| A | Overall length | 2876mm | I | Track grounding length | 900mm |
| B | Ground contact length(Transportation) | 2611mm | J | Track length | 1233mm |
| C | Overall height(to top of boom) | 1040mm | K | Track gauge | 670mm |
| D | Overall width | 840mm | L | Track width | 840mm |
| E | Overall height(to top of cab) | 1495mm | M | Track Shoe width | 180mm |
| F | Counterweight ground clearance | 385mm | O | Counterweight height | 794mm |
| G | Min. Ground clearance | 132mm | P | Revolving frame width | 760mm |
| H | Tail swing radius | 800mm | Q | Distance from swing center to tail | 795mm |
|
| Operating Weight and Ground Pressure |
| Operating weight includes basic machine |
| Operating weight | 850kg |
| Ground pressure | 20 KPa |
