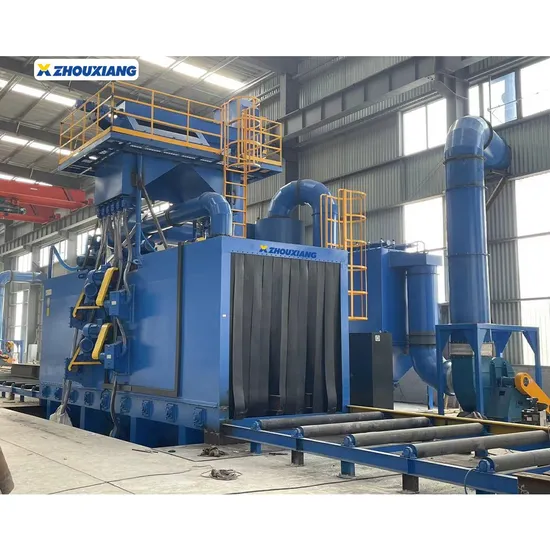

Shot Blasting Machine Plate Sheet H Beam Welding Line

Product Description

Shot-blasting machine is a kind of shot-blasting equipment, which is applied to clean the surface of steel structure welding work-piece, H-style steel, plate and other profiles. It can clean away rusty spot, rusty scale, welding slag on the work-piece surface, as well as welding stress, in order to remove stress and improve surface lacquer quality and rot proofness of steel structure and steel.
Technical parameter:

Model	HGP0816	HGP1018	HGP1220
Width×height of work-piece	800×1600mm	1000×1600mm	1200×2000mm
Length of work-piece	3000~12000mm	3000~15000mm	3000~15000mm
Quantity of Shot blaster	8	8	8
Allowable load of conveyor	1000kg/m	1000kg/m	1000kg/m
Conveying speed	0.5~5m/min	0.5~5m/min	0.5~5m/min
Air volume for dust removal	12000m3/h	12000m3/h	12000m3/h
Circulation quantity of grinding shots	120t/h	120t/h	120t/h
External dimension of main machine (L×W×H)	6770×2100×2900mm	7200×2300×3250mm	7200×2520×3650mm
Depth of pit	1950mm	1950mm	1820mm
Total power	135kW	140kW	140kW
Above are our standard model, it can be designed and manufactured according to customer's request.
