Agricultural Gearbox Tractor Parts Factory Customized Folding Straw Crusher Residual Film Recycling Machine Multifunction Mower Gear Box

US$200.00-500.00 1 Piece (MOQ)

Basic Info.

Model NO.
KLF2803
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
ISO
Color
Black
OEM
Available
Ratio
1:2.16/1:1.92/1:1.57
Input
177HP/300HP/190HP/330HP/200HP/350HP
Input N.M
2306/2107/2470/2316/2619/2456
Output N.M
1065/973/1289/1209/1667/1563
Input r.p.m
540/1000
Output r.p.m
1166/2160/1037/1920/848/1570
Kw
130/220/140/243/148/257
Transport Package
Crate
Specification
Cast iron
Trademark
KADIVA
Origin
Zhejiang China
HS Code
8483409090
Production Capacity
50000PCS/Month

Product Description

Agricultural Gearbox Tractor Parts Factory Customized Folding Straw Crusher Residual Film Recycling Machine Multifunction Mower Gear box Product Description

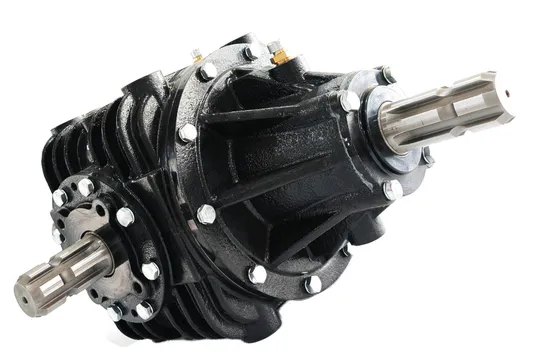

KLF2803 folding straw crusher machine, residual film recycling machine, four-row seedling killing machine gearboxes
This general gearbox for agricultural machinery is especially suitable for agricultural machinery and equipment such as folding straw crusher machine, residual film recycling machine, four-row seedling killing machine gearboxes. As a common agricultural work machine, the field returning machine is mainly used to chop crop straw, root stubble and other residues into small pieces and spread them evenly on the ground surface for subsequent farming. A variety of speed-increasing transmission ratios are available: 1:1.57, 1:1.92, 1:2.16.Our gearbox can provide stable power output to ensure efficient and stable operation of the field return machine under various operating conditions.This product is designed with a single clutch device when the cutter shaft rotates at high speed during operation. When stopping work, the tractor suddenly stops power input. The inertia of the cutter shaft is too large, and the single clutch effectively protects the gear and shaft from damage. Product Parameters
Detailed Photos
Click here for more products
Company Profile
Please contact us if you need more informations
