Basic Info.
Single Package Size
77X58X80cm
Place of Origin
Guangdong, China
Machinery Test Report
Provided
Function
Circulating Cooling Water
Product Name
Cold Plunge Ice Bath Water Chiller
Single Gross Weight
57.000kg
Video Outgoing-Inspection
Provided
Transport Package
Wooden Box
Production Capacity
8000/Month
Product Description

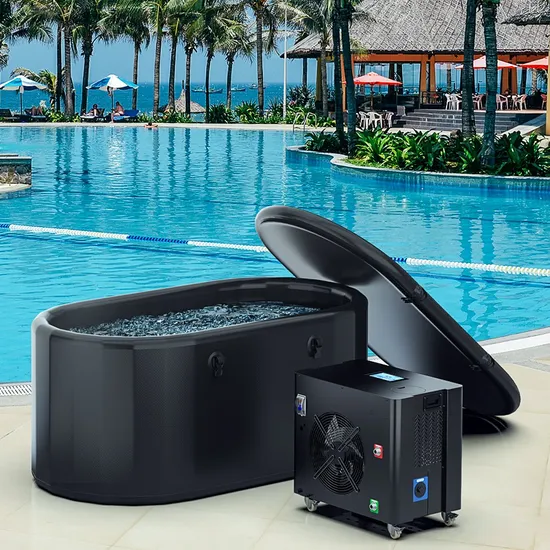

Experience unparalleled water temperature control with our Premium Self-prime1 hp water
chiller for ice bath. Notably, our SY-10 model boasts a robust 1.0 HP horsepower for powerful
and efficient cooling,with ozone water purification,and custom chiller system cooling down to
0°C. Additionally, featuring remote intelligent control, high energy efficiency, and durability,
our system is ideal for enterprise users seeking seamless 24/7 operation, reducing operational
costs while ensuring optimal performance.
| High-End Ice Bath Chiller Main Technical Data Sheet |
| Horse Power | 1.0 HP | 2.0 HP |
| Power Supply | 100-127V
60Hz | 220-240V
50/60Hz | 100V
50/60Hz | 100-127V
60Hz | 220-240V
50/60Hz |
| Input Power | 1150W | 1060W | 1500W | 1500W | 1950W |
| Compressor Power | 945W | 900W | 1200W | 1260W | 1660W |
| Cooling Capacity | 2700W | 2450W | 3000W | 3600W | 5000W |
| Heating Capacity | 3800W(HC) | 3500W(HC) | 4500W(HC) | 5800W(HC) |
| Heating Function | Yes (HC) |
| Cooling Function | Yes |
| Refrigerant | R454B |
| Water Temperature | 3-42°C adjustable |
| Water flow | 16-20 L/MIN |
| Water pump power | 88W |
| Ozone Disinfection | Ozone Generator |
| Water filter | Installed External |
| Remote control | iOS & Android APP,WIFI |
| Transport wheels | Yes |
| Carry handle | Yes |
| Quick Connectors | Yes |
| Net Weight | 40KG | 50KG | 52KG |
| Product Dimension | 56*37.9*56.5CM | 56*40*57CM | 56*42*57CM |
| Certification | ETL,PSE,CE,SAA,IPX-4 |
Water Volume&Cooling Time
(From 23 to 5°C Based on ambient
temperature 28 °C-For your reference) | 200L≤2.8H
300L≤4.3H
400L≤5.7H
500L≥6.5H | 200L≤3.1H
300L≤4.7H
400L≤6.2H
500L≥6.9H | 200L≤2.7H
300L≤3.6H
400L≤4.5H
500L≥5.1H | 200L≤2.5H
300L≤3.3H
400L≤4.1H
500L≥4.6H | 200L≤2.0H
300L≤2.8H
400L≤3.6H
500L≥4.1H |
| Main Features | Overloading Protection. |
| 5-Inch TFT Color Screen. |
| 24v DC Water Pump. |
| Max. Cooling Capacity in Specified Spaces. |
| Suitable For Indoor and Outdoor Cooling and Heating. |
| Excellent Value, Priced to be as Affordable as Possible. |
| Manufactured With the High Quality Materials and Components That can Work Under 24h x7. |
>>
