Mobile Type Towable 1300 Model Wood Chipper with Diesel Engine and Hydraulic System

Product Description

The main engine feed tank is six meters length, so during transportation and installation, the main engine is equipped with double axle
The tyre is equipped with a traction frame and a steering tyre behind it, can be hauled by truck or tractor.
The machine can be installed directly on the ground .
The feed in conveyor is driven by hydraulic motor, and the hydraulic motor can be adjusted by manual valves
The feed speed can be fast and slow, the structure is strong, the wear resistance is high, the inlet diameter is large, and the feeding is more
Smooth.
The chipper is composed of frame, rotor, feed conveyor and hydraulic control system,diesel engine
Parameters:

Diesel engine power	480HP or 430HP
Feed in width and length	1300mm width,6m length
Rotor	4,6,or 8 pcs blades rotor,rotor diameter:800mm
Blade material	H12 alloy
Mobile system	6 tyre- mobile ,+towing system
Feed in size	1300mm*600mm
estimated capacity per hour	15-20 tons wood chip
discharge conveyor	7.5m length foldable conveyor
Screen hole size	as required
Feed power supply	Diesel engine +hydraulic system
Dead knife assembly material	cast steel of integrated processed
Main shaft material	45# quenched and tempered steel

Pictures

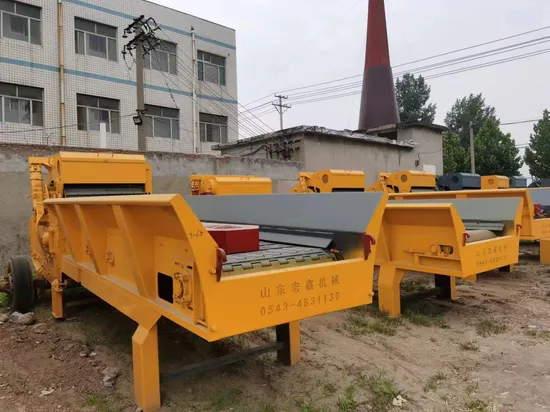

Workshop manufacturing
Clients visiting
Our office

---
