| US$5,000.00-15,463.20 | 1 Piece (MOQ) |
| Fire pump system is made of Electric Pump + Diesel Engine Pump+Jockey Pump+Accessories Operation: 1 Duty(electric pump ) + 1 stand by(diesel engine ) + 1 Jockey Capacity: 100GPM, 150GPM, 200GPM, 300GPM, 400GPM, 500GPM, 750GPM, 1000GPM, 1250GPM...GPM with Pressure 4Bar, 5bar, 6Bar, 10Bar, 15Bar... Bar. |
| Application:Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service. |
| Working Conditions :Altitude ≤ 1000m; Ambient temperature: +5 °C ~ +40 °C; Relative humidity: <= 90%. |
| Features 1)Safe and reliable 2)Easy installation 3)Easy to operation 4)International standard 5)Use foreign advanced technology |
| A brief introduction of EDJ Fire Pump System's components | |
| Diesel Engine Fire Pump | Have the standard of National Fire Protection Association Standard NFPA20 "centrifugal fire pump installation" and other standards. The diesel engine fire pump is equipped with the characters of good and strong overload capacity, compact structure, easy to maintain and high degree of automation. Altitude ≤ 1000m; Ambient temperature: +5 °C ~ +40 °C; Relative humidity: ≤ 90% |
| Electric Fire Pump | Apply to fire protection system, pressurized water pipes, industrial and urban water supply and drainage, water pressure high-rise building, long-distancewater, heating, bathrooms, boilers and well-being of the water cycle, pressurized water and air-conditioning cooling systems and other equipment supporting occasions. Flow: 1~300L/s; Head: 0.15~1.6MPa; Power: 0.75~160/6P kW; Speed: 960~2900r/min; Working Pressure: ≤1.6MPa; Medium Temperature: ≤90°c; Material: HT200 (Bronze ally impeller) |
| Jockey Pump | The combination of advanced international and domestic technologies The design and manufacture of the self-priming vertical multistage centrifugal pump The adoption of standard vertical motor and fast loading type mechanical seal makes it convenient to change Apply to mild corrosive medium and substitute the foreign CR, CRN and similar products. High efficiency and energy saving and reliable quality Flow rate: 4.2-504 m3 / h; Head: 24-240 m; Power: 1.5-450 kw; Speed: 2900 r/min; Caliber: φ 40-phi 250; Temperature range: 0-+ 90 °C; Working pressure: more than 2.4 Mpa |
| Control Panel | Frequency conversion constant pressure control equipment: high efficiency and energy saving, perfect fault handling. Fire pump control equipment: high and low level industry, civil building fire, spray, water curtain and other pumps' control. Submersible sewage pump control equipment: automatically control and protect of submersible sewage pump. Air conditioning pump control equipment: control the pump in air condition system, bathhouse and swimming pools. And it's also suitable for startup and control of alternating dynamo. |
| Control System Function | Diesel engine water pump Auto start and stop,electricl water pump start and stop,jocky water pump start and stop,relative sensors and wires. |
| OPTIONS | PICTURES FOR REFERENCE ( U CAN CHOOSE THE TYPE U PREFER) |

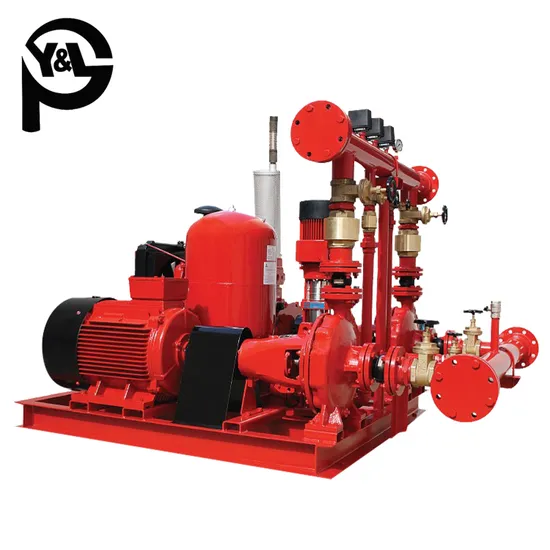

| 1-EDJ Type (Electric Pump+Diesel Pump+Jokey Pump) | |
| 2-DJ Type (Diesel Pump+Jokey Pump) | |
| 3-EJ Type (Electric Pump+Jokey Pump) | |
| 4-EEJ Type (Electric Pump+Electric Pump+Jokey Pump) |
