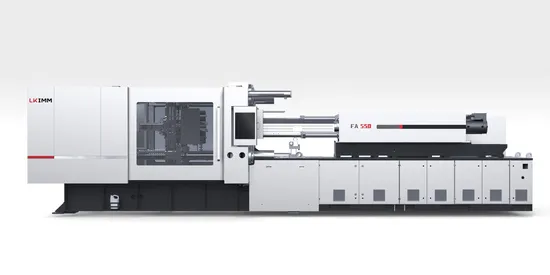

Lk Forza-III 450 Ton Plastic Injection Molding Machine

Product Description

Brief Introduction
LK group specializes in the design manufacture and sales of die casting machines, high precision injection molding machines, CNC machine centers, and industrial integrated control systems. Our market share of die casting machines is over 60%, the injection molding machine ranks among the top 3 in China.
We have more than 10 production bases worldwide, most in domestic China, 1 in Taiwan, and 1 acquired company in Italy. Our injection molding machine centers are Zhongshan in Guangdong and Ningbo in Zhejiang. There are over 60 sales and service centers in the world, and our high-quality after-sales service and 24-hour prompt response system provide customs all-around fully coverage customer service.
This series of products with advanced technology, stable performance, and excellent quality, is widely used in household appliances, auto parts, logistics, packaging, high-speed train, pipe fittings, and other fields of plastic products production, especially suitable for deep cavity and low-pressure injection molding process products production. The clamping force of the Forza series with 450 to 7000 tons.
Forza 450 ton - 7000 ton
1.The compact two-plate closure unit makes it possible to install large plates.
2.The module for quick change of molds is plug and play.
3.Excellent dry cycle performance.
4.Servo drive system for large tonnage machines.
5.Linear guide rails for the clamping and injection motion support
6.Single Cylinder injection unit.
Use of application
Crate, Pallet, Garage bin, Pail, Automotive, Electrical Appliances, Car Body, Power train, Interior, Home appliances
Products Display
Technical Parameter List

	ITEM	UNIT	FA450
Injection Unit	Injection Device		Injection Unit 1				Injection Unit 2
	Injection System		2300			3500
	Shot Weight(ps)	g	996	1155	1509	1527		1737	2199
	Screw Diameter	mm	65	70	80	75		80	90
	Injection Volume	cm^3	1094	1296	1658	1678		1909	2416
	Injection Pressure	Mpa	219	189	145	210		185	146
	Screw L/D Ratio	L/D	23	22	19	24		23	20
	Injection Rate	cm^3/s	426	494	645	443		504	639
	Screw Speed	r/min	166			127
	Hopper Capacity	L	125			125
Clamping Part	Clamping Force	KN	4500
	Die Height(Min-Max)	mm	350-900
	Max.Daylight	mm	1650
	Space Between Tie Bars	mm	840*830
	Ejector Stroke	mm	250
	Ejector Force	KN	165
Others	Pump Motor Capacity	KW	28.1*2
	Max. Working Pressure	Mpa	17.5
	Oil Tank Capacity	L	800
	Heating Capacity	KW	31			39
