Basic Info.
Powder Mixing Machine
200L-2000L
Mixing Drum Shape
Circular Groove
Operating type
Continuous Operating
Transport Package
Plywood Wooden Carton
Production Capacity
30units/Month
Product Description
Paddle Blender, Paddle Mixer, Granule Blender , Granule Mixer
Indroduce

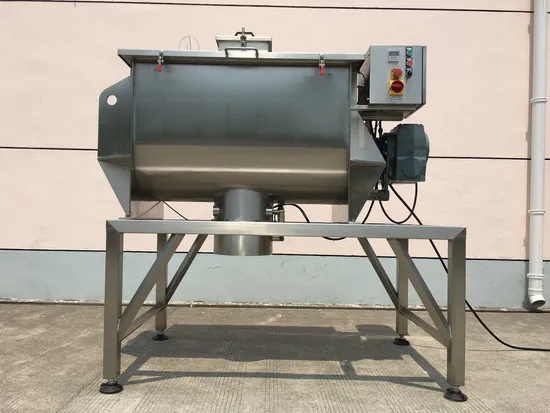

TDW non gravity mixer is called double-shaft paddle mixer too, it is widely applied in mixing powder and powder, granule and granule, granule and powder and a bit liquid. It is used for food, chemical, pesticide, feeding stuff and battery etc. It is high precision mixing equipment and adapts to mix different sizes of materials with different specific gravity, different proportioning . The mixing effect is very good for which ratio reaches 1:1000~10000 or more. After adding crushing device, the mixer could partially break granular materials
Feature
1 High active :Rotate reversely and throw materials to different angles,mixing time 1-3min
2 High uniformity:Compact design and rotated shafts be filled with hopper, mixing uniformity up to 99%
3 Low residue:Only 2-5mm gap between shafts and wall, open-type discharging hole
4 Zero leakage: Patent design and ensure the rotating axle & discharing hole w/o leakage
5 Full clean:Full weld and polishing process for mixing hopper, w/o any fastening piece like screw,nut.
6 Nice profile: the whole machine is made by 100% stainless steel to make its profile elegant except bearing seat
Model
| TDW-300
| TDW-500
| TDW-1000
| TDW-1500
| TDW-2000
| TDL-3000
|
Effective Volume
| 300L
| 500L
| 1000L
| 1500L
| 2000L
| 3000L
|
Fully Volume
| 420
| 650
| 1350
| 2000
| 2600
| 3800
|
Loading factor
| 0.6-0.8
| 0.6-0.8
| 0.6-0.8
| 0.6-0.8
| 0.6-0.8
| 0.6-0.8
|
Turning Speed
| 53rpm
| 53rpm
| 45rpm
| 45rpm
| 39rpm
| 39rpm
|
Total Weight
| 660kg
| 900kg
| 1380kg
| 1850kg
| 2350kg
| 2900kg
|
Total Power
| 5.5kw
| 7.5kw
| 11kw
| 15kw
| 18.5kw
| 22kw
|
Length(L)
| 1750
| 1880
| 2250
| 2470
| 2550
| 2800
|
Width(W)
| 1150
| 1180
| 1470
| 1660
| 1780
| 1980
|
Height(H)
| 1280
| 1350
| 1600
| 1800
| 1860
| 1980
|
Radius(R)
| 277
| 307
| 377
| 450
| 485
| 534
|
Power Supply
| 3P AC208-415V 50/60Hz
|
>>
