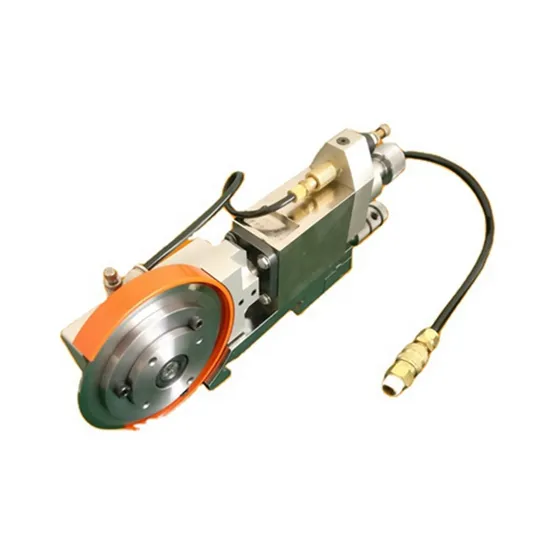

China Hot Sale Circular Pneumatic Air Slitter Blade Holders

Product Description

Product Description
Pneumatic knife holder are operated by using the energy of compressed air provided by air compressor as the power source.Pneumatic knife holder adopts one - piece forming design.And provide good rigidity and strength, can quickly combine with the knife, to achieve accurate alignment of the knife.It has the advantages of time saving, speed and stability.
Modern high performance production equipment, operating speed is higher, cutting is more difficult, so the need for more innovative, more professional solutions.According to the specific needs of customers, we provide tailor-made products, product life longer, more robust and reliable, better performance and more convenient operation, to meet their requirements for the maximum return on equipment investment.
Pneumatic knife holder
Application :
Paper (from type paper, dust-free paper, textured paper, kraft paper, wallpaper, adhesive paper, etc.), Rubber (magnetic rubber, rubber plate, etc.), Foam class (foam cloth, foam, etc.), Cloth (natural cotton, trademarks, cloth, medicine fabric, non-woven fabric and synthetic leather cloth, dust-free cloth, etc.), Plastic film (BOPP, PE, PET, adhesive tape, soft PVC, etc.).
Product Parameters
LZ-90/60 Pneumatic Knife Holder

Max lower cutting range	22mm	Min slitting width	40mm
By the knife	2mm	Max applicable slitting speed	600m/min
Work pressure	4-6kgf/m²	Max thickness of slitting paper	500g/m²
Quick connector	1/8	Max slitting film thickness	0.5mm

LZ-150/80 Pneumatic Knife Holder

Max lower cutting range	28mm	Min slitting width	60mm
By the knife	3mm	Max applicable slitting speed	1200m/min
Work pressure	4-6kgf/m²	Max thickness of slitting paper	1000g/m²
Quick connector	1/8	Max slitting film thickness	1.5mm

LZ-150/80 Pneumatic Knife Holder

Max lower cutting range	30mm	Min slitting width	60mm
By the knife	3mm	Max applicable slitting speed	1500m/min
Work pressure	4-6kgf/m²	Max thickness of slitting paper	1000g/m²
Quick connector	1/8	Max slitting film thickness	2mm

LZ-180(200)/80 Pneumatic Knife Holder

Max lower cutting range	32mm	Min slitting width	65mm
By the knife	3mm	Max applicable slitting speed	1800m/min
Work pressure	4-6kgf/m²	Max thickness of slitting paper	2000g/m²
Quick connector	1/8	Max slitting film thickness	3mm

Detailed Photos
Field Installation
Company Profile
LEIZHAN is a China Based engineering company and machinery supplier committed to offer complate solution and provide high-cost-performance equipments related to stock preparation and paper-making industry. With advantage technology and excellent equipment,we provide one-stop service from consultation,process design and optimization,manufacture,installation,commissing and personnel training and so on. At the same time,we can supply all kinds of stock preparation and paper making equipment and accessories.
For years,we have insisted on taking customer's value as our center and having strict quality-control and innovation in the whole process.
Our products have reliable quality and superior performance and have been exported to Poland,Greece,Turkey,Iran,India,Packistan,Bangladesh,Thailand,Indonesia,Philippines,Malaysia,Vietnam,Mexico,Guatemala,Costa Rica,Columbia,Egypt etc.
We have established long-term cooperation relationship with many paper mills and agent.
Honesty,cooperation and win-win are important to us.We insisted on serve our customers with high quality products,sincere service and good reputation.We are appreciated for the long-term trust and favor from our customers.Hope we can cooperate sincerely and make progress together with our new and old customer.

---
