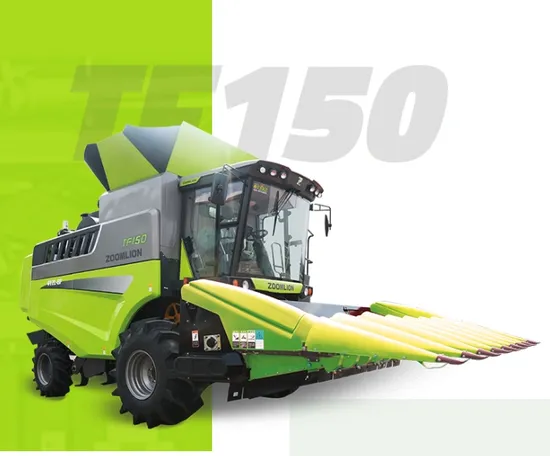

| Model | Unit | TE150 | |
| Dimensions(L*W*H) | mm | 11500×2200×3630 | |
| Weight | kg | 9800 | |
| Rail distance | mm | 1400 | |
| Wheel base | mm | 2310 | |
| Grounding length | mm | 1670 | |
| Engine | Model | / | High pressure common rail |
| Rated power | kW/rpm | 140/2050r/min | |
| Displacement | L | 7 | |
| Emission grade | / | Euro 3 | |
| Track width | mm | 400 | |
| Earthing voltage | kPa | 59 | |
| Feeding capacity | kg/s | 6 | |
| Adaptive ridge spacing | mm | ≥1100 | |
| Adaptive ridge height | mm | 0~200 | |
| maximum gradability | ° | ≤20 | |
| Operating forward speed | km/h | 0~6.65 | |
| Qualified rate of cutting height | % | ≥90 | |
| Root breaking rate | % | ≤10 | |
| dirt percentage | % | ≤8 | |
| Total loss rate | % | ≤5 | |
| Qualified rate of sugarcane section | % | ≥93 | |
| Fuel consumption per hectare | kg/hm2 | 190 | |
