Jute Linen Fabric Weaving Machine Loom

Product Description

Product Description
Feilong 68 model high speed rapier loom adopts mature rapier weaving technology and absorbs the most advantageous international intermediate beating-up mechanism of loom and unique sword belt driving technology for perfect combination, improving weaving output of the latest loom. Its extremely solid fuselage structure ensures high stability and low solid fuselage construction which enables it to easily weave various heavy or other kinds of necessary fabrics.
Product Parameters

Reed Width	190, 210, 220, 230, 260cm (narrow-weaving machine) 280, 340, 360 cm (wide-weaving machine),380cm,410cm, 520cm, 580cm, 600cm
Weaving shrinkage	70cm (narrow-weaving machine), 90cm (wide-weaving machine)
Loom drive	Directly driven by switched reluctance main motor
Speed	Designed maximum speed of 750 rpm, Economical speed of 550-600 rpm
Filling insertion rate	Up to 1425 m / min
Weft color selection	Programming of 1-8 color or different specifications.
Weft insertion	Unique weft insertion mechanism with the space connecting bar (patent). 16mm narrow sword belt, single guide flight system. 27mm wide sword belt, unguided flight system (optional).
Let-off	Servo motor control 850Kg weighing tension sensor. Warp beam removing device Double back rest system
Shedding	STAUBLI 2658B electronic rotating dobby Up to 20 head frame tappet motions (optional), jacquard head (optional).

There are nearly 20,000 units Feilong 68 model high speed rapier looms in operation on the market, mainly used in clothing fabrics, industrial fabrics and other fields, and are the main models for export.
Main techanic Datas:
1. The high-force torque motor is used as the main drive and powerful clutch to realize starting and braking, which maximizes the quality of the cloth surface;
2. Electronic dobby opening: up to 20 heald frames;
3. Space four-link mechanism weft insertion: separate reed seat, weft insertion on both sides, middle handover; There are two ways of guide hook weft insertion and free flight weft insertion;
4. Electronic let-off and electronic take-up realize constant tension weaving and variable weft dense weaving. Packaging & Shipping
The packaging details:
Company Profile
About us:
Jiangxi Zhongbo Intelligent Equipment Manufacturing Co., Ltd. is a high-tech enterprise dedicated to the integrated activities of research and development, production, and sales of high-end intelligent equipment. Situated in Fuzhou City, the cradle of Jiangxi's talents, Fuzhou is renowned as a city that is business-friendly, liveable, and inviting for travel.
Zhongbo Intelligent has introduced a range of intelligent, high-speed, information-based, and integrated high-end weaving equipment. The "ZBMax88" high-speed rapier loom, in particular, has attained the international advanced level and garnered the approval of users. Simultaneously, the company has unveiled intelligent equipment products such as intelligent high-speed rapier industrial cloth looms and high-speed rapier jacquard looms.
The core team members of the company are the cream of the textile machinery industry, a conglomeration of talents from fields including mechanical design, electrical design, software development, big data, and cloud computing. With characteristics like high speed, high efficiency, intelligence, wide adaptability, and user-friendly operation, they are designed to meet market demands. As a result, the company has developed a series of high-speed looms that stand as representatives of the world's most advanced and intelligent equipment.
Our company adheres firmly to the enterprise spirit of "dedication, integrity, efficiency, and innovation." We are committed to promoting the upgrading of the textile industry and wholeheartedly invite friends from all walks of life to join us in weaving a prosperous tomorrow.

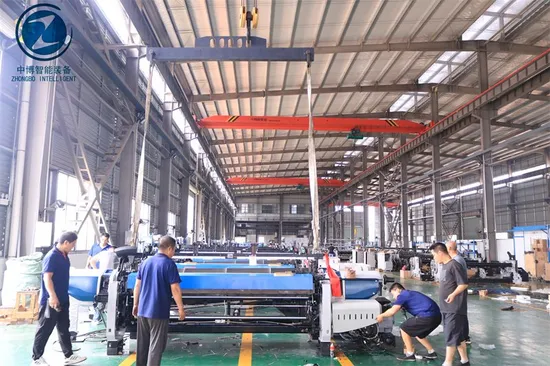

Our Factory:
Our Team:
After Sales Service
On-site installation service
24 hours online service
one year gurantee

---
