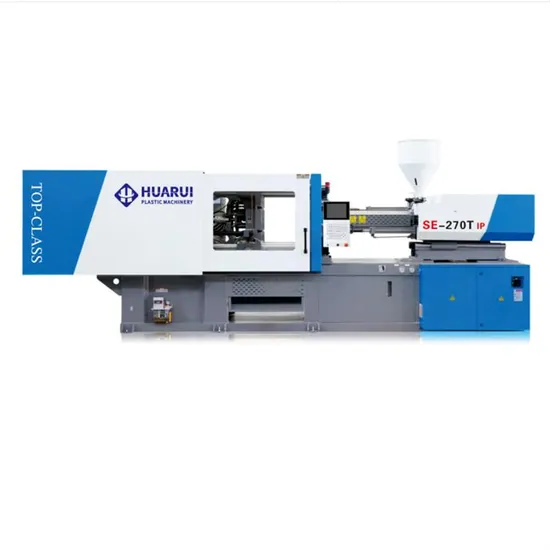

270ton Ton Horizontal Injection Molding Machine Pet Preform Making Machine

Product Description

SE-270T IP Fast Speed Plastic Water Bottle Lid Cover Closure Cap Making Injection Moulding Machine
Product Parameters

Se-270T/IP Plastic Injection Molding Machine Information
Item		Unit		A B C
Screw diameter		mm		70
Theoretical shot volume		cm³		1155
Shot weight (PET)		g		1340
Shot weight (PET)		oz		47.3
Length/Diameter ratio		L/D		25
Injection pressure		Bar		1305
Injection rate		cm³/sec		448
Max.screw speed		rpm		167
Clamping force		KN		2700
Max.daylight		mm		885*835
Open stroke		mm		560
Space Between Tie-bars		mm		620*570
Min mould dimension		mm		270
Mould thickness range		mm		620
Ejector force		KN		100
Ejector stroke		mm		150
No.of ejector pins		unit		13
Max.motor power		KW		38
System pressure		MPa		175
Heater input power		KW		31
Oil filling capacity		L		300
Machine size		M		6.5*1.5*2.3
Net weight		KG		9500

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
