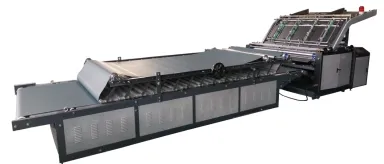

High Quality Semi-Auto Automatic Flute Laminating Machine Lum-A1350/1450/1550/1650 Factory Store

Product Description

Product Parameters Technical parameter:

Model	LUM-A 1350	LUM-A 1450	LUM-A 1550	LUM-A 1650
Max size of cover face	1300 x1250mm	1450 x1250mm	1550 x1250mm	1600x1250mm
Mix size of cover face	360 x360mm	360 x360mm	360 x360mm	360 x360mm
Economic speed	0-100pcs/min	0-100pcs/min	0-100pcs/min	0-100pcs/min
Laminating precision	±1mm
Main power	6.0kw	6.5kw
Dimension	8.8×1.95×1.7m	8.8×2.05×1.7m	8.8×2.15×1.7m	8.8×2.25×1.7m
Weight	About 3000kg	About 3500kg	About 3500kg	About 3500kg

Features Main feature: The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient. Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed. New concept front gauge location, position high accuracy, bottom sheet never pull ahead. Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically. Automatic gluing, and the glue can be used circulatory, avoid glue waste. Roller design scientifically, avoid glue fly out when the speed is high. Pressure rollers adopt one side adjustment, convenient and fast. Rocker controls wash roller's fluctuation, easy cleaning. Counter designs scientifically, easy recording the amount you have been worked. Company Profile
