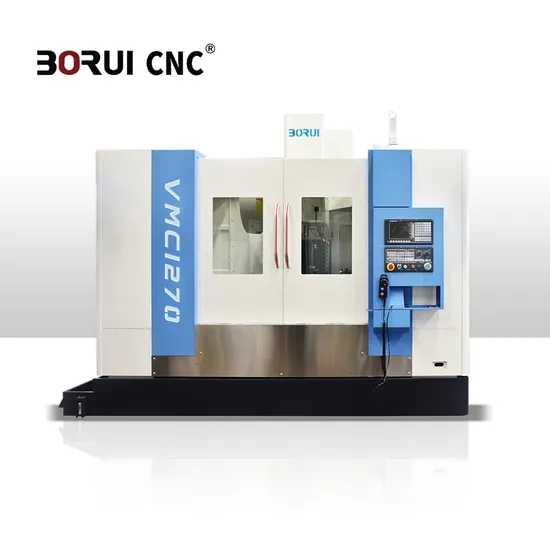

Vmc1270 CNC Machine Center Vertical CNC 5 Axis Milling Machine for Metal

Product Description

Vmc1270 CNC Machine Center Vertical CNC 5 Axis Milling Machine for Metal
Product Description
This VMC is suitable for the mechanical processing and mold making.And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling, drilling, tapping, boring etc.
The main specification :

Item			VMC1270
Travel	X axis		1200mm
	Y axis		700mm
	Z axis		700mm
	Spindle nose to table		150-850mm
	Spindle nose to column		780mm
Feed	Max.X rapid feed		24m/min
	Max.Y rapid feed		24m/min
	Max.Z rapid feed		18m/min
	Cutting feed		1-10000mm/min
	Torque		23/23/23N.M
Table	Table size		1300X700mm
	Max.Load		1000kg
	T slot		5-18-125mm
Spindle	Type		Belt
	Speed		50-8000rpm
	Spindle bore		150mm
	Spindle taper		BT40
	Pull stud		MAS403-40BT-1
	Spindle motor synchronizing wheel		Taiwan
	Spindle belt		Taiwan
	Main motor		15/18.5kw
Acuracy	Positioning Accuracy (JIS)		±0.015/300mm
	Repeatibility (JIS)		±0.0075mm
Machine	Size	3870X2900X2580mm
	Weight	6000kg

Standard Accessories: Optional Accessories Spindle taper hole cleaning system; 24PCS Arm type Tool Magazin
16PCS Armless type Tool Magazine Air condition
Cooling system; 4th axis
Automatic Lubrication Systems; 5th axis
Pneumatic system; Spindle central water discharge
Full splash guard; Infrared probe
Lighting; Hexagon tool setting gauge
Stainless steel protection plate; Germany Linear guideway
Tri-color alarm lamp; Spindle Speed 10000rpm
Air gun; Chain type Chip conveyor
Fixed sizing block; Spiral type Chip conveyor
Cool-heat exchanger. Taiwan Spindle;
Taiwan Lead screw;
Taiwan Linear guideway;
Taiwan Unclamping Cylinder.
CNC Controller system:
GSK;FANUC;Siemens;KND
CNC Lathe Features:
* High quality resin sand , ensure machine driven stability
* Taiwan high precision and speed spindle
* Taiwan armless type ATC with 16 tools or 24 tools
* Coolant system with high flow and high head pump, ensure sufficient cooling at high speed running.
* Totally enclosed, safety and beautiful
Details Display
Packaging & Shipping
Packing shipping
For machine:Usually by sea;
For documents:By international express, eg.DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
Our service
1.Technical support online service provided.
2.Technical files service provided.
3.Machine operation video provided
4.On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7.If you need to develop products with your own specification, we can help you to work it out.
8.Always be honest, never lie to customer, and never declare anything we don't have Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in China
Sino-Germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at Taiwan
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
