High Speed Metal Cutting Circualr Saw SD-70r

Product Description

We Guanbao Industrial Co., Ltd. is majoring in band saw machine and circular saw manufctuering. Over 20 years production history, we will surely supply you high quality goods with competitive price. We also have our design team, we can do OEM for you if need.
CNC High Speed Metal Circular Saw Machine
SD-70R Technical Data

1	Cutting capacity	Round bar	15mm--75mm
		Angle material	15mm--55mm
		Round tube	15mm--75mm
		Square tube	15mm-55mm
		Remnant material length	70mm+a(a means not enough to cut the length of workpiece)
2	Head Spindle
	Application of TCT tungsten carbide circular saw blade		Φ285x2.0mm
	Rotation number of cutter		50-160rpm(stepless speed regulation)
	Spindle driving motor		7.5KW/4P variable frequency motor
	Tool gap compensation device		Magnetic powder brake
	Tool shock proof parallel block		Tungsten carbide
	Tool chip cleaner		Round steel brush
	Cut-off feeding way		Rock type/AC servo motor
	Clamping way		Hydraulic/ Horizontal and vertical each one
3	Sizing Feeding (GFC) mechanism
	Driving way		AC Servo motor/Precision ball screw
	Clamping mode		Horizontal hydraulic
	Front end cutting length		10-99mm
	Single feeding cutlength		6-730mm(single time)/9999mm(multi-times)
4	Automatic feeding device
	Material length		3000-6000mm
	Material placing area width		980mm
	Feeding way		Hydraulic lifting material
	Angle material slip device		Optional
5	Hydraulic device
	Driving motor		3.75KW(5HP)/4P
	Driving pressure		65kg/cm2(6.5Mpa)
	Oil capacity		90 L
6	Air pressure device
	Working air pressure		4-6kg/cm2(55-85psi)
7	Machine size and weight
	Size(LxWxH)		7100*2200*1880
	Weight		3750kgs
8	Equipment & device
	Automatic lubrication system		Timing forced oil
	Automatic distributor		Pneumatic reciprocating
	Chip conveyor		Chain plate
	Oil mist cooling device		Oil mist lubrication sprayer
	Cutting fluid cooling device		0.09kw/2p/cycle cooling
	Working lamp		LED/ waterproof and dust-proof

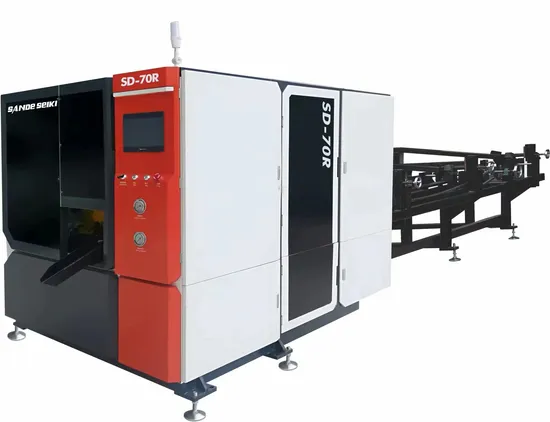

Machine picture:
Oil mist system(optional)
The product images shown are for illustration purpose only and may not be an exact representation of the product.
We reserve the right to change product images and specifications at any time without notice.
The product images shown are for illustration purpose only and may not be an exact representation of the product.
We reserve the right to change product images and specifications at any time without notice.

Factory show: Some of the fairs FAQ: 1) Q: Can i have your quotation? A: First, please offer us the information of your material size, without these parameter, we are not able to recommend you the suitable machine 2) Q: Do you have overseas service? A: No,but we normally help our customers to solve the problems through phone,Email, skype, internet video. high efficiency. We offer one year guaranteen, within one year, if component of the machine broken, we freely offer the component, but the delivery fee should be paide by client 3)Q: What is the voltage and Hertz in your country? A: In China,the Voltage is 380V(3 Phase), the Hertz is 50HZ, we can change the voltage and Hertz according to your requirment. 4) Q: How about the payment term A: T/T 30% deposit, 70% of balance paid at the sight of bl copy send by email.

---
