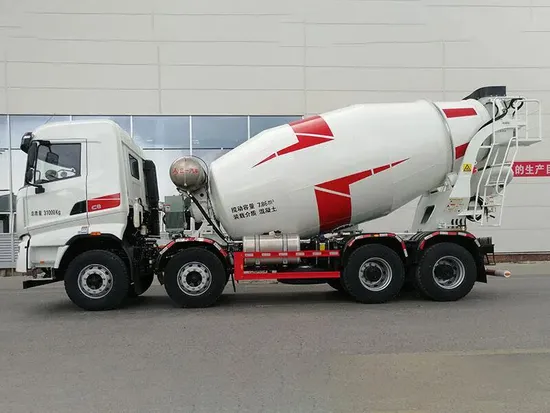

Sy412c-6W 12cbm 8*4 Concrete Cement Mobile Mixer Truck Mixing Machine

Product Description

Product Description
SY412C-6WTruck Mixer Engine Brand
WP12.430N
Mix Capacity
12 m³
Water Tank Capacity
800 L
Specialized Cab
· Safe and secure
· Built for the driver
· Convenient ACCESS maintenance
· Attractive styling
· Panoramic monitoring (optional)

Improved Braking
· By making full use of exhaust valve braking technology, braking distance has been reduced by 15% and brake lining wear is decreased by 50%. Use a high volume air compressor, high quality piping, and new sealing technology that shortens air build up time and brake response time.

Energy-saving Technology
· The engine dual power mode, coupled with the unique intelligent transmission's power matching technology makes a 10% fuel savings.
Low Deck Technology
· The frame is made of high-strength special steel plates, improving reliability and safety. It uses original subframe-free structure combined with the hollow front and back-end structure design, reducing the center of gravity by 100mm and making the vehicle lighter.
Leading Edges Steering Technology
· The large displacement power steering pump reduces operator effort by 40%. Optimizing chassis geometry and front axle steering angle reduces the minimum turning radius by 15%.
Anti-buildup Technology
· The three section blade provides an efficient discharge angle.
· The flushing device, an innovative front taper and ball-crown connecting structure are installed at the rear taper, in order to clear stagnant aggregate from the dead space, and to prevent aggregate from piling up at front and rear tapers. Due to this, the residual rate at the discharge port declines to 0.4%.
Smart Operating Technology
· Each truck is equipped with a GPS system, which boasts five functions including vehicle monitoring, record/playback, alarm reporting, fleet management, statistics and analysis. With this information you can keep abreast of the mixer truck's location, maintenance items, discharge, etc.
Maintenance Tips
· Dashboard mounted monitor provides maintenance alarms for the truck's key components such as engine, axle, and transmission in order to facilitate maintenance scheduling.
Product Parameters

Model	SY412C-6W
Engine Brand	WP12.430N
Cab	Cab CB318
Curb Weight	14660(GCC) kg
GVW	43460(GCC) kg
Dimension (L*H*W)	9825*2525*3980(GCC) mm
Wheel Base	1900+2950+1350 mm
Mix Capacity	12 m³
Feeding Speed	≥8 m³/min
Discharge Speed	≥5 m³/min
Water Tank Capacity	800 L
Displacement	11.596 L
Rated Power/Rev Speed	316/1900 kW/rpm

Detailed Photos
