Octagon Pipe Forming Machine

Product Description

Product Description

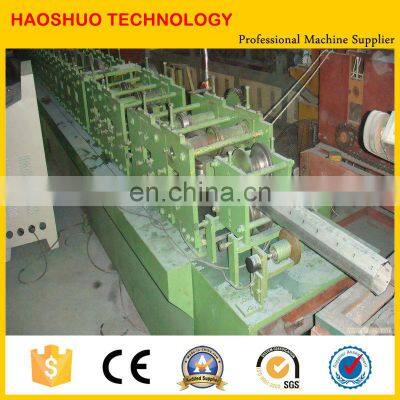

Octagon Pipe Forming Machine
Octagon steel Pipe is made of steel or aluminium, and it is an important parts of roller shutter door.
Our octagon steel pipe roll forming machine is an ideal machine to realize massive production of octagon pipe.
Simple technical details for Octagon steel pipe roll forming machine:

Spec	40mm, 60mm, 70mm,80mm
Material thickness	0.6mm~1.2mm
Forming speed	5m-8m/min
Forming Steps	12-14 Stations
Material of Roller	45# Steel, Plated Chrome
Material of Shaft	45# Advanced Steel
Driven	Double Chain Driven
Cutting	Hydraulic Cutting
Material of Cutting Knife	Cr12Mov, Quench HRC58-62
PLC	Panasonic, Japan
Touch Screen	Panasonic Japan
Encoder	Omron, Japan
Dimension of the Whole Line	5000mm*500mm*900mm
Weight	Approx. 2 Ton

A Production Flow Chart:
FAQ:
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Alibaba with SGS assessment (Audit report can be provided).
