1pair 2X0.5mm Jumper Wire 500m

Product Description

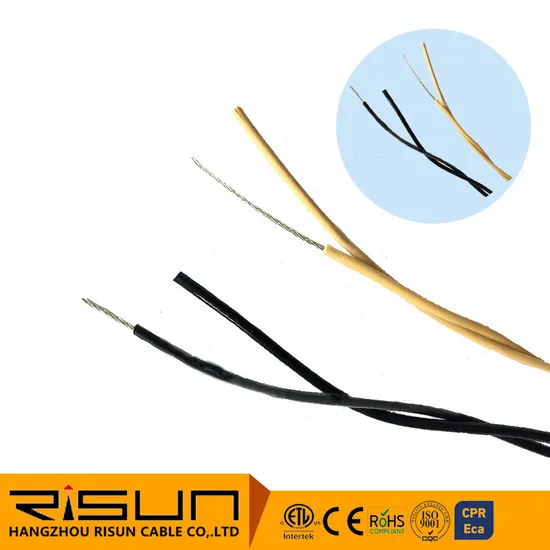

1Pair 2x0.5mm Jumper Wire 500m

CONSTRUCTION
Conductor	Copper wire	0,50+/-0,01mm
	Elongation at break	≥ 20%. Sample under test 250 mm
	Breaking load	F > 216 MPa
Dielectric	PVC	1,02+/-0,1mm
	Color	Blue/White (other color is available)
	Strand step	45mm - 55mm
	Strand direction	Right hand

FINISHED WIRE
D.C. Electric Resistance @ 20ºC	≤ 90 Ω/km after twisting
Resistance Unbalance	≤ 2%
Insulation Resistance @ 20ºC	between every conductor and the metallic mandrel with diameter 100 mm
	MAX. 90 Ohm/km - 20 ºC

CABLE ENVIRONMENTAL CHARACTERISTICS
Work Temperature	-20ºC+75ºC
Cable guarantee	20 years

DELIVERY FORM

500m/plastic reel (Reel color: black), label on each reels

4 reels in one box

Pallet (on request): Euro pallet (120*80)

Application:
This product is robust PVC insulated tinned copper annealed wire, available as a single wire, a twisted pair, twisted triple, twisted quad or twisted quintuple. It is intended for use with Insulation Displacement Connectors (IDC) when they are fitted to distribution frames in customer' premises Company Introduction

Packing:
Production line:

FAQ
Q1. ARE YOU TRADING COMPANY OR MANUFACTURER? A: We are factory.
Q2. HOW LONG IS YOUR DELIVERY TIME? A:Generally it is 5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.
Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER? A: Normally, 10kms per one specification and one color
Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA? A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Q5. HOW TO PROCEED AN ORDER FOR CABLES? A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6.IS IT OK TO PRINT MY LOGO ON CABLES ?
A: Yes. Please inform us formally before our production.
Q7. WHAT IS YOUR TERMS OF PAYMENT?
A: Payment<=60km,100% in advance,payment >=60KM,30%TT in advance ,balance before shipment . WELCOME TO RISUN!!!

---
