PVDF Coating Curtain Wall Facade Cladding Aluminum Composite Panel/ACP

Product Description

PVDF coating Curtain Wall facade cladding Aluminum Composite Panel/ACP
For building curtain wall outside use. Welcome to Guangzhou GEESHINE building Materials Co., LtdGEESHINE is a subsidiary of Linyi XINGDA Aluminum Plastic Decorative Material Co., Ltd (Short as XINGDA). XINGDA is a professional manufacturer of the aluminum composite panel and prepainted aluminum coils. Company Scale: After 18 years' development from 2003, XINGDA now has 9 production lines, more than 200 experienced workers, 20 senior engineers, and an 85,000 square meters' plant. Now company start to invest in a color coated aluminum coils plant, tracking more widely world market Company Certificates: Company's products have passed a series of test by Intertek, XMTEST, CTC and get certificate of ISO9001-2008 / ISO4001-2014 / CE / SGS / ASTM / SGS / ROSH / SONCAP / OHSAS18000 / CNAS. Company Honor: As the earliest and most professional ACP manufacturer in China, the Company is the one of the units drafting China national standards of Aluminum-plastic Composite Panel. XINGDA is also a council member of China Aluminum-plastic Composite Material, a Branch of China Building Material Council. Product Description PVDF coating 4x8 acp aluminium cladding composite panel consists of two sheets of corrosion resistant aluminum permanently bonded to polyethylene core material. The surface of the front aluminum is PVDF finished which can be made into different colors.

Specifications
Product name	PVDF coating Curtain Wall facade cladding Aluminum Composite Panel/ACP
Brand	GEESHINE
Panel Width(mm)	1220mm,1250mm,1500mm, 1550mm
Panel Length(mm)	2440mm,3050mm,4050mm,max 6000(no limited as per loading container)
Panel thickness(mm)	2mm/3mm/4mm/5mm/6mm (Standard 3mm/4mm)
Aluminum Alloy	AA1100,AA3003,AA5005 series
Glossy	40%-60%
Aluminum coil thickness	0.15mm,0.18mm,0.21mm,0.30mm,0.40mm,0.40mm,0.5mm
Surface treatment	PVDF coating
Thickness of coating	25um to 28um
Coating flexibity	3T
Coating adhesive	>1 grade
Peeling Strength	7N/mm
Coefficient of Linear Thermal Expansion	2.4mm/m
Color	RAL, PANTONE,GEESHINE color chart or customers' requirement
PE core material	non-toxic low density polyethylene
Back coating	primer coating
Base material	high strength aluminum alloy sheet
Delivery time	5-15 working days after the deposit
Packing	FCL, In bulk,LCL,In wooden pallet package or according to customers' requirement

Detailed Image
The features PVDF coating 4x8 acp aluminium cladding composite panels are well known for their features such as excellent fireproof properties, sound insulation, strength & durability, surface flatness and smoothness. Along with these features the most important one that the panel covers is that of being weather resistant as results indicate that PVDF coating panels can withstand the harshest of weather for decades.
1. Excellent weather resistance and fire resistance;
2. Excellent durability and good torsion strength;
3. Lightweight, rigid and superior surface flatness;
4. Good impact-resistance and ultra strong peeling strength;
5. Good workability, simple installation, easy processing and maintenance;
6. Environmental protection.
The application Due to the super peeling strength,good temperature adaptability,excellent performance of fireproof,weather proof,quickly installed,excellent self-cleaning character etc features,the brushed sheet aluminum is widely used as the building materials.

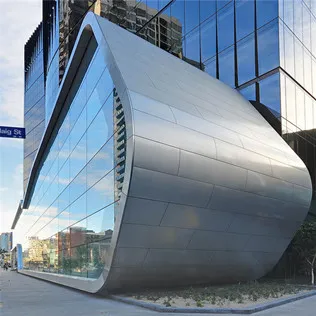

1. Exterior wall of building, Curtain wall;
2. Refitting or renovating of old building exterior wall.
3. The balcony, equipment unit, interior compartments
4. Panel, logo plate, display platform.
5. The interior wall decoration panel, ceiling, advertising board
6. Industrial usage, cold car body;
4x8 acp aluminium composite panel
FAQQ1.How about your delivery time?
a) Standard size & GEESHINE's standard colors-normally within 10 days' lead time;
b) Standard size & custom colors-normally within 15 days' lead time;
c) Non-standard/special size-normally within 20 days' lead time;
Q2.Can I get a sample for free?
A: Yes,the free sample is available with freight collect or prepaid.
Q3.Can you provide the OEM or ODM service?
A:Yes,all kind of the products can be customized according to your requirements.
Q4. How long time for your aluminum composite panel warranty?
A: PVDF coating acp aluminum composite panel is 20 years warranty for the outdoor usage;
PE coating acp is about 10 years with indoor usage;
Q5.What is your MOQ for the aluminum composite panel?
a) Standard size: 500 sq.m./color; special size: 1000 sq.m./color
b) Special colors: 1000 sq.m.

---
