Global Suppliers 50Hz/ 60Hz Cooling/ Heating Full DC Inverter Vrv Air Conditioner Vrf Villa Central Air Conditioning System

Product Description

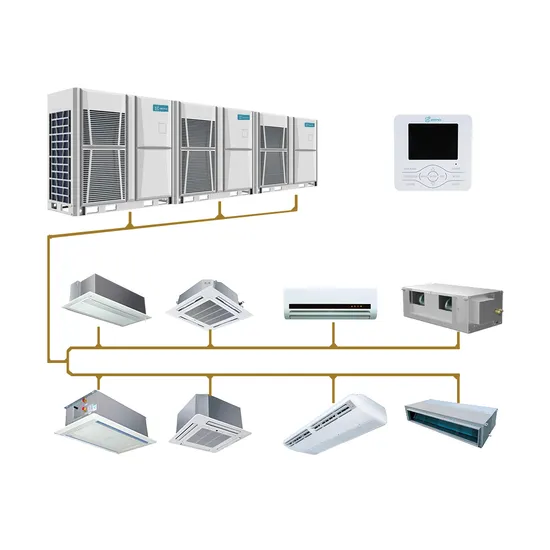

ZERO VRF is a powerful system for your next HVAC project if you are looking for cost effective solutions.
We offer one stop solution includes VRF drawing design, model selection, instalation material calculation, start up
guidance etc, equipments, installation material and other parts will be loaded all together in the same containers
directly ship to your job site, we make your VRF projects never been so easy.WHY CHOOSE US
1.Experience
More than 15 years of overseas HVAC project experience,with deep understanding of global markets.
2.Professional design
Our professional design team are ready to provide you a AC plan drawing based on your architecture blueprint, we will advise the
most suitable solution.
3.Professional selection
We can select the most suitable model for your project according to the drawings. 4.One-stop solution
The necessary installation material and other parts can be collected and loaded them all together directly ship to your job site,
which is truly one-stop solution.
5.Technical support
Professional technical support, worry-free after sales.1.Project Drawing, building layout, equipment BOQ.
2.Project name: building name or building type, such as xxx office project, residential house project etc.
3.Expected shipping date of this project.
4.Project type: tender or self-owned.
Products Line
8/10/12Hp 14/16HP 18/20HP 22HP 24HP 26/28/30/32HP
13 BASIC MODULES (380V-3Ph-50/60Hz)

HP	8	10	12	14	16	18	20	22
Dimension (mm)	990*1740*845			1340*1740*845
Fan quantity	1	1	1	1	1	2	2	2
Compressor quantity	1	1	1	1	1	2	2	2

HP	24	26	28	30	32
Dimension (mm)	1990*1740*845
Fan quantity	2	2	2	2	2
Compressor quantity	2	2	2	2	2

Specification

Type			Mini VRF	Large VRF
Capacity		HP	3HP-12HP	8HP-22HP
Power supply		V/Ph/Hz	220-240V/1PH/50Hz208-230V/1PH/60Hz380-415V/3PH/50Hz & 60Hz	208-230V/3PH/60Hz380-415V/3PH/50Hz & 60Hz
Cooling	Capacity	kW	8KW~33.5KW	25.2KW-61.5KW
		kBtu/h	27.3-60kBtu/h	86-209.8kBtu/h
	Power input	kW	5.78-14.4KW	17-27.65KW
	EER	kW/kW	3.32-3.69	3.02-4.72
Heating	Capacity	kW	9KW-37.5KW	27.4KW-69KW
		kBtu/h	92-191kBtu/h	27.4KW-69KW
	Power input	kW	5.41-14KW	15.8-26.08KW
	COP	kW/kW	3.56-4.27	4.11-5.5
Comperssors	Type	-	DC inverter
Fan motors	Type	-	DC inverter
	Max.ESP	Pa	85	85
Refrigerant	Type		R410A
Aiflrow rate	m³/h	m³/h	3300-8000	15000-17000
	dB(A)	dB(A)	45-60	58-63
Ambient temp	Cooling	ºC	-5-50ºC	-5-55ºC
	Heating	ºC	-20-30ºC	-30-30ºC

Our Advantages
LONG PIPE & HEIGHT DIFFERENCE
1.The total pipe length: 1000 m.
2.The longest pipe length: 200 /240m.
3.Height deference:Outdoor unit. Above<90m<90m.4.Outdoor unit below<110m.
5.Height difference between indoor units: 30m.
6.Length from first indoor distributor to last indoor unit 90 m.
7.Communication wire length can be upto 1000m.
CONTROLLERS AND SOFTWARESIMPLIFY CENTRALIZED CONTROLLEREasy to install.Controller connects to outdoor units only.1 Controller can control max. 100 indoor units.Operation mode restriction.Error or protection code displayCan control single unit or all units together
INDOOR UNITS QUANTITY
Max. 100 Indoor units can be connected in ONE system.
WIRELESS REMOTE CONTROLLERS
Indoor unit address inquiry.Indoor unit address setting.Temperature setting.Operation mode setting.Fan speed setting.Timer function.
SERVICE WINDOW ON FRONT COVER
Thanks to the service window, checking outdoor
unit's status and setting is now easy, no need to
remove the front cover.
WIDE OUTDOOR OPERATION RANGE(380V)Max.cooling operating temperature is up to 55°C.Low ambient temperature of cooling mode can be downto-10ºC.

---
