Agricultural Power Harrow Bondioli Type Rakes Shift Gear Rotary Tiller Gearbox

US$200.00-500.00 1 Piece (MOQ)

Basic Info.

Model NO.
KLF-DXB220
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Certification
ISO
Color
Black
Warranty
Warranty
OEM
Available
Ratio
2.07:1/2.57:1
Input
215HP
Input r.p.m
800/1000
Output r.p.m
386/389
Input N.M
1886/1509
Output N.M
3909/3879
Kw
158
Transport Package
Crate
Specification
Cast iron
Trademark
KADIVA
Origin
Zhejiang China
HS Code
8483409090
Production Capacity
50000PCS/Month

Product Description

Agricultural Power Harrow Bondioli Type Rakes Shift Gear Rotary Tiller Gearbox Product Description

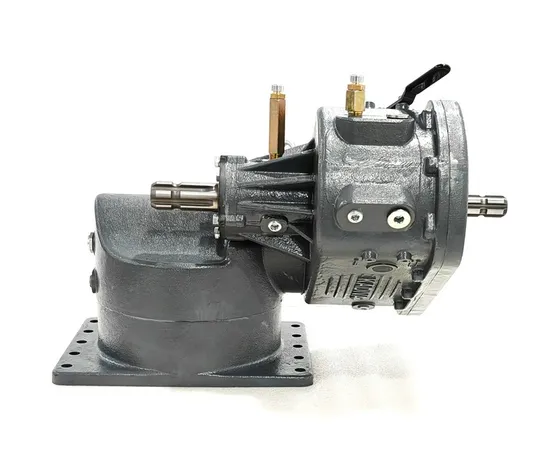

KLF-DXB220/KLF-DX300 Power driven rake Gearbox
This product is used in the power-driven rake main transmission gearbox. It is derived from European and American design concepts. The main transmission box drives the transfer case gear and rotates the rake blade for operation. Power-driven rake uses vertical blade rotation to effectively protect the soil from nutrient loss. The design range of KLF-DXB220 is 2.5 meters to 3 meters, and it adopts a fork-type shifting method. Suitable for tractors with different rotational speeds, shifting gears faster and more conveniently. Product Parameters
