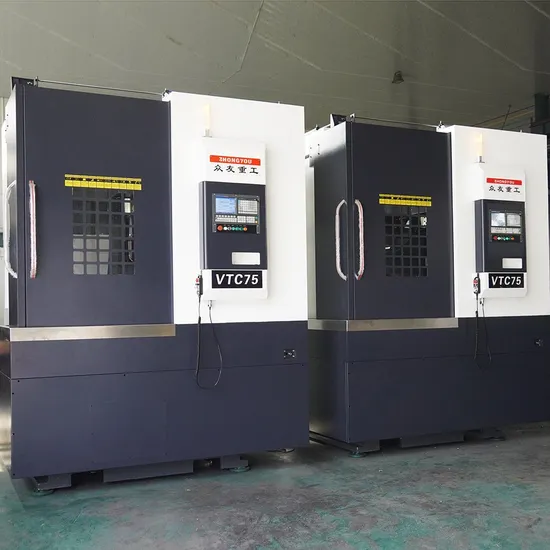

CNC Vertical Lathe Machine for Cutting Big Size Wheel

Product Description

cnc vertical lathe machine for cutting big size wheel Product Description
1.Product Description

This series machine is suitable for machining parts in all industries. On the machine cylindrical turning and boring . tapering and surfcing as well as grooving can be carried out rough and finishing.Since the workpiece is mounted on the horizontal worktable, it is more convenient to clamp the workpiece.
2.Main Features
1. The machine tool is of roller type linear slide rail, with ultrahigh rigidity and overload capacity, substantially improving positioning accuracy and bearing capacity in regard to vertical and horizontal feed movement.
2. The machine tool spindle belt pulley is connected with that of spindle numerical control servo motor through belt, equipped with 22Kw motor for infinitely variable speed of wide range, satisfying different spindle speed required for parts rough machining and finish machining.
3. Both the vertical and horizontal feed is controlled by servo motor automatically. The vertical direction setting Balance weight
structure greatly extend the life cycle of lead screw
4. Automatic tool holder: the tool and detection station conversion can be realized by CNC system.
5.Automatic lubrication system is used for main moving parts.
6.Can choose different machine appearance.

3.Specification

Specification	UNIT	VTC450	VTC60	VTC70
Max.Swing diameter	mm	500	650	700
Spindle speed	rpm	100~1500	100~1000	100~1000
Cutting feed speed	mm/min	0.1~1000	0.1~1000	0.1~1000
Vertical moving distance of tool holder	mm	550	600	700
Tool rest horizontal moving distance	mm	400	450	700
Longitudinal fast moving speed	mm/min	16000	16000	16000
Transverse fast moving speed	mm/min	16000	16000	16000
Tool holder form		horizontal	horizontal	horizontal
Diameter of hydraulic chuck	mm	400/500	400/500	400/500/630
Main motor power	Kw	15	18.5	22
positioning accuracy	mm	±0.008	±0.008	±0.008
Re -positioning accuracy	mm	±0.004	±0.004	±0.004
Machine size	mm	2000x1900x3030	2000x1900x3030	2050x1800x3200

4.Application
CNC Vertical Lathe is suitable for internal and extemal turning,internal and extermal tapering,circula arc,facing,slotting,thread,drilling,reaming,boring,chamfering of big diameter axle parts and disc type parts. The machine has awidely use,high efficiency,good stability,easy to operate.It can achieve the high-precision processing of single or batch processing.
5.Packaging Details


Packaging Details
1. Packing method: Internal plastic moisture-proof anti-rust packaging, External wooden packaging, Exclusive container transport.
2. Mode of transport: by sea or by land.

6.Our services

Our services are divided into pre-sale, sales, after-sale three parts.

Pre-sale:to provide detailed advice, the program recommended to the factory inspection, as far as possible to meet your questions and needs.
Sales:can support samples, support diversified payment methods, the solid forklift tire press machine production process
transparent,standardized and quickly stocking.
After-sales:support diversification guidance, training, voice and video images, and even solid forklift tire press machine overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use
7.Company information
Zhongyou has passed the ISO quality management system certification,Products are exported to more than 50 countries and regions including Europe, America, Asia, Oceania and Africa.Has a number of product patents and honor certificates,is a continuous innovation machinery and equipment company.

8.FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: How can I get a quotation?
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
3: Where is your factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5:How can i trust your company?
A:We have professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .

---
