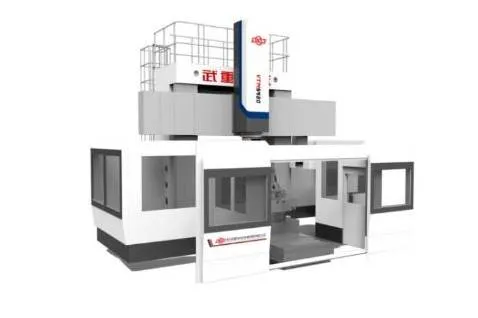

Vtm5916 Table Movable Type Vertical Milling and Turning Center / Lathe

Product Description

APPLICATION
VTM59 series turning and milling combined machine can complete turning, milling, drilling, boring and tapping by once set up. X/Y/Z/C 4 axis linked machining can be realized.
The machine is especially suitable for turning, milling, drilling, boring and tapping by once set up of small sized precision and complicated part.
The main performance characteristics: Table can travel back-force, with CNC Y axis. X/Y/Z/C can realize 4-axis linked machining. Table adopts high accuracy double row roiler bearing in radial for centering; in axial adopts large sized ball thrust bearing for supporting. Table can adopt double AC spindle motor drive; can realize high precision electric gap elimination. Toolhead ram travel adopts ballscrew pair transmission; guide way adopts pump per pocket closed type hydrostatic guide way of constant flow. Milling spindle is housed in toolhead; AC spindle motor drive; 2-shift gearbox speed change.
Main technical parameters:

Item	Unit	Model
		VTM5912	VTM5916	VTM5925
Max turning job diameter	mm	Φ1250	Φ1600	Φ2500
Max tuming job height	mm	1000	1200/1500	1500/2000
Table diameter	mm	Φ1050	Φl400	Φ2000
Table max loading capacity	r/min	5	8	16
Table turning max speed	r/min	300	250	200
Table max torque	kN.m	10	20	40
Ram section size	mm2	280	280	280
Ram max travel	mm	1000	1000/1400	1400
Milling spindle power	kW	31	31	31
Milling spindle max torque	N.m	750/1000	750/1000	750/1000
Milling spindle highest speed	r/min	3000	3000	3000

Detailed Photos
Workshop
Package
Installation and commissioning

---
