| Chip Type | Protocal | Capacity | Anti Collision | Function |
| Available 960MHz Chip | ||||
| U-code HSL | ISO18000-6B | 256 Bit | No | Read/Write |
| GEN2(NXP) | ISO18000-6C | 512 Bit | No | Read/Write |
| Alien-H3 | ISO18000-6C | 512 Bit | No | Read/Write |
| Available 13.56MHz Chip | ||||
| F08 | ISO14443A | 1KB | No | Read/Write |
| Ntag203 | ISO14443A | 144 Byte | No | Read/Write |
| Ntag213 | ISO14443A | 180 Byte | No | Read/Write |
| Ntag215 | ISO14443A | 540 Byte | No | Read/Write |
| Ntag216 | ISO14443A | 924 Byte | No | Read/Write |
| Ti2048 | ISO15693 | 2KB | Yes | Read/Write |
| Chips | Frequency | memory | Protocal | data keeping |
| TK4100 | 125KHZ | NO | NO | 10 years |
| EM4200 | 125KHZ | NO | NO | 10 years |
| T5577 | 125KHZ | 330bits | ISO 7815 | 10 years |
| EM4305 | 125KHZ | 330bits | ISO 7815 | 10 years |

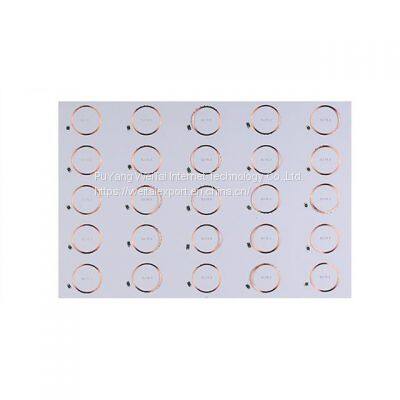

| Product Name | FM1108 S50/S70 NFC chip rfid good quality inlay factory |
| Material | copper paper |
| Size | dia30mm, dia 50mm, 30x30mm, 30x45mm, 50x75mm, etc.or can be customed. |
| Protection | Waterproof, smooth surface. |
| Chip | LF: TK4100, EM4200, T5577, EM4305 HF: F08, S50/NXP S50, S70/NXP S70, NTAG 203/213/215/216, I-code 2, mifare desfire, etc. UHF: Alien H3, Ucode, G1/Gen2. |
| Frequency | LF(125KHZ), HF(13.56MHz), UHF(960MHz) |
| Protocol | ISO14443A, ISO15693, 18000-6B/C |
| Crafts | Silk Screen Printing, Laser Engraved Number, Serial Number, Spray Printed Number, Epoxy, etc. |
| Color | Red/Black/Orange/Green/Yellow/Blue/White/Blank/Pink/Purple or Any Pantone Color or Multi-Colors or Customized. |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -20°C to 85°C |
| Humidity | 40% to 80% RH |
| Features | - Resistant to dust, dirt and humidit - Possibility to combine two technologies in one key fob - Suitable for indoor and outdoor use |
| Personalization | The rfid key fob can be personalized by full colour printing or long-lasting laser engraving, using your logo, a number or any graphic motive. |
| Applications | Access Control & Security, Loyalty System, Parking Management, Time Attendance, etc. |
