Dx51d+Z Dx52D+Z Dx53D+Z Dx54D+Z Dx56D+Z 1mm Thickness Corrugated Metal Roof Tile Zinc Coated Galvanized Sheet/Plate for Building Materials

Product Description

Dx51d+Z Dx52D+Z Dx53D+Z Dx54D+Z Dx56D+Z 1mm Thickness Corrugated Metal Roof Tile Zinc Coated Galvanized Sheet/Plate for Building Materials
Product Description

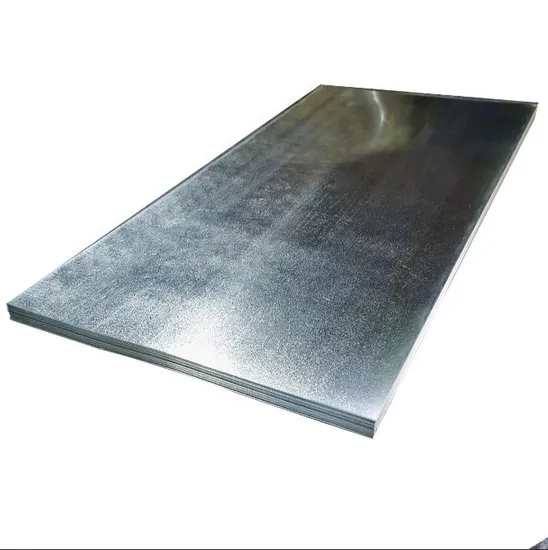

Galvanized steel sheet is cut from galvanized steel coil, the base material is cold rolled steel, it has good processing performance. The zinc layer has uniform thickness, strong adhesion, no peeling during processing, and good corrosion resistance.The surface is smooth and clean, the size is accurate, the board surface is straight, the spangles are even and beautiful.

Product Name	Galvanized Steel Plate/Sheet
Grade	DX51D+Z,DX52D+Z,DX53D+Z,DX54D+Z,DX56D+Z
	S250GD+Z,S280GD+Z,S350GD+Z,S550GD+Z
	SGCC,SGCD,SGCE
Standard	ASTM,AISI ,JIS,DIN,GB,EN,etc.
Zinc coated	30-275g/m2
Spangle	Large Spangles,Regular Spangles,Small Spangles,Zero Spangles
Surface treatment	Chromated,oiled/non-oiled and anti-finger printing
Thickness	0.3-3.0 mm or as required
Width	600-1250 mm or as required
MOQ	5TONS
Substrate	Cold rolled ,Hot rolled
Tolerance	Thickness:±0.01mm
	Width:±2mm
Packaging	Export standard package: bundled wooden box, suit for all kinds of transport, or be required.
Application	construction,decoration,hardware,electric appliances,machinery and other industrial and civil purposes,such as electronic capacitor,composite cooker,rice cooker,refrigerator, computer casting,telecommunication,equipment,lamp shade,air conditioner,cosmetics cover and so on.
Container size	20ft GP:5898MM(Length)*2352mm(Width)*2393mm(High) 40ft GP:12032mm(Length)*2352mm(Width)*2393mm(High) 40ft HC:12032mm(Length)*2352mm(Width)*2393mm(High)

STEEL GRADE	CHEMICAL COMPOSITION %					MECHANIC PROPERTY			C.B OF COATING
	C	Si	Mn	S	p	T.S	Y.S	E.L
	x103	x103	x102	x103	x103	Mpa	Mpa	%	d=180
JIS G3302SGCC	12	30	41	31	21	480	300	13	OK
JIS G3302SGCH	12	10	21	18	6	680	650	20	OK
ASTM 653CS.B	29	30	60	35	30	386	250-380	20	OK
DX51D+Z	20	21	18	1.8	11	355	245	38	OK
G550	12	6	73	5	17	715	654	8	OK

Detailed Photos
Product Application
Customer Feedback
Certifications
Quality Inspection
All our products are strictly tested for quality before packaging, and unqualified products will be destroyed and customers can appoint third parties to inspect the products before loading too. Packaging & Shipping
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM,27MTS
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM,27MTS
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM,27MTS



FAQ
Q: What are the details of your after sales service?
A:1) We provide the necessary technical support to all of our customers, such as material performance and heat treatment data advice.
2) We provide the appropriate steel material technical parameters for customers in Germany, The USA, Japan, Britain, and other countries.
Q: How could I get a sample?
A: Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
Q:It's my first time to import steel products, can you help me with it?A:Sure,we have agent to arrange the shipment, we will do it together with you.

---
