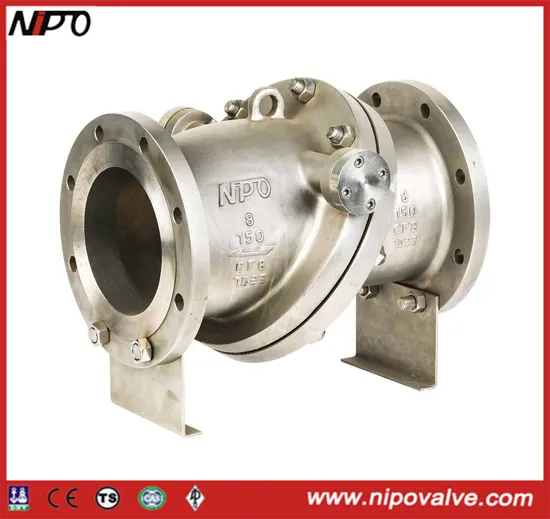

Double Flanged Type Tilting Disc Check Valve

Product Description

Flange Type Tilting Disc Swing Check Valve:
Structural Feature
Quick valve disc closedown,low water hammer pressure;
Applicable for and easily installed for vertical or horizontal pipelines;
Smooth flow passageway and small fluid resistance;
Flexible action and good sealing performance;
Narrow valve travel and small closedown impact;
Integrated structure,simple and compact,in beautiful shape;
Long service life and good reliability.
Main Parameter Specification
Design and manufacture:API594,API 6D,JB/TB8937;
Face to face and end to end:API594,API6D,DIN3202,JB/T8937;
Pressure-temperature rating:ASME B16.34,DIN2410,GB/T9124,HG20625,SH3406,JB/T74;
Inspection and test: API598,JB/T9092;
Pipe flange: JB/T74~90,JB/T9112-9124,HG20592~20635,SH3406,ASME B16.5,DIN2543~2548,GB/T13402,API605,ASME B16.47.
Product Range
Body material: carbon steel, stainless steel, alloy steel,bronze
Nominal diameter:2"~24"(DN50~DN600)
End Connection: RF,RTJ,BW
Pressure range: Class150~ 2500(PN16~PN150)
Working temperature:-196ºC~+560ºC
PRODUCT
INSPECTION
We welcome all the world customers to contact us for more cooperation. With our years of technical knowledge and experience,we assure you, Naibang will be one of your best parters in China.

Design and manufacture	API594,API 6D,JB/TB8937
Face to face and end to end	API594,API6D,DIN3202,JB/T8937;
Pressure-temperature rating	ASME B16.34,DIN2410,GB/T9124,HG20625,SH3406,JB/T74
Inspection and test	API598,JB/T9092;
Pipe flange	JB/T74~90,JB/T9112-9124,HG20592~20635,SH3406,ASME B16.5,DIN2543~2548,GB/T13402,API605,ASME B16.47.

---
