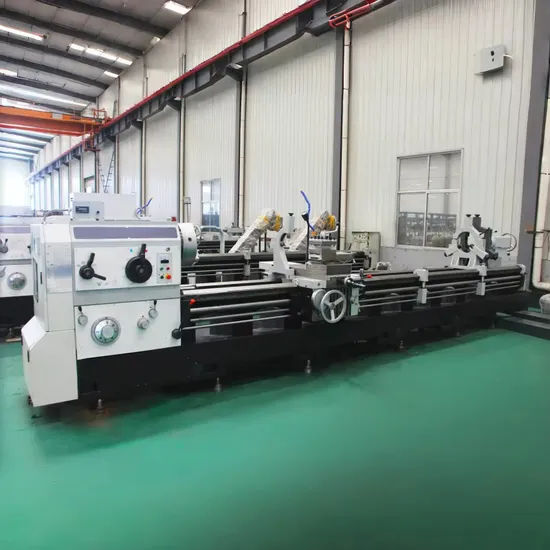

Cw 6163 Cw6130 Cw6125 Cw6263e High Precision Heavy Manual Lathe Machine Manual Lathe Machine

Product Description

Features:
This serles lathe machine is sultable for intemal and external turning, tapering, and other rotating faces, metric.module and inch threads, as well as drilling and pull oil slot. Width of bed is bigger than normal lathe machine, with high hardness on guideway,. the guideway is through high-frequency quenching,wear-resisting. This machine is easy to operate, with rapld device for carriage, design with single hand wheel to operate.
The strenath and rigidity of machine is higher than normal lathe machine, high eficiency, suitable for heavy duty machining.
Parameters:

Specifications	Units	CW6163B	CW6163C
Max .Swing over bed	mm	630
Max .Swing over carriage	mm	350
Max length of work piece	mm	1500/2000//3000
Width of bed	mm	550
Section of turning tool	mm	32×32
Spindle speed	r/min	7.5-1000(18 grade)	8.5-800(18 grade)
Hole through spindle	mm	104	130
Spindle taper		120(1:20)	140(1:20)
Spindle end	mm	D11
No.of food		64 kinds
Range of metric threads		(1-240mm)50 kinds)
Range of inch threads		(1-14tpi)26kinds
Range of module threads	mm	0.5-120(module 53kinds)
Range of diametral pitc threads		1-28DP(24 kinds)
Max.tailstock spindle travel	mm	250
Tailstock spindle diameter	Φ/mm	100
Taper of tailstock spindle center hole	mm	MT5
Main motor	KW	11
Overall dimensions for 1500mm	mm	3700X1450X1770	3700X1450X1770
Overall dimensions for 2000mm	mm	4100X1450X1770	4100X1450X1770
Overall dimensions for 3000mm	mm	5200X1450X1770	5200X1450X1770
Length		G.W/NW	GW/NW
Overall dimensions for 1500mm	kg	4700 4600	4700 4600
Overall dimensions for 2000mm	kg	5200 5100	5200 5100
Overall dimensions for 3000mm	kg	5900 5800	5900 6800

Details:
QUENCHING BED 400MM WIDTH
Width is bigger than normal lathe,with high hardnbess wear-resisting
RAPID TRAVERSE DEVICE
Rapid device for carriage single hand to operate
CHUCK AND TOOL POST COVER
Export configuration Protect the operator
FOOT BRAKE
Export configratior need extra cost
2 AXIS DRO

2 axis digital readout, need extra cost.
STEADY REST, FOLLOW REST

Length above 1500 mm steady rest and follow rest are standard.

---
