Multi-Channel Syringe Pump is a precision syringe pump specially designed for high precision liquid handling with a small footprint applied in limited spaces. The fluid path borosilicate glass, PCTFE, sapphire is workable for strong corrosive chemicals in a wide application range. It is available to select from a variety of syringe volumes and valve configurations.

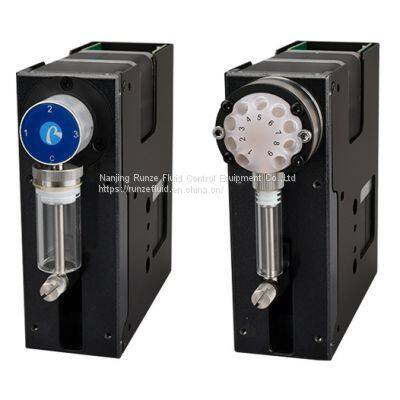

Smart SY-01B syringe pump is the newest member in the series of micro-syringe pumps self-developed by Runze Fluid, which can handling fluids from microliters to milliliters with extraordinary accuracy and precision. Accommodates distribution valves and syringe in a variety of configurations. Transfers liquid in high precision which can meet most users' requirements. Can be used in series with multiple pumps. The excellent performance of Smart SY-01B syringe pump provides a guarantee on the R & D and application for users. efficiency maintenance-free stepper motor drive system. Address up to 24 pumps individually via RS485 or CAN Communication.
Accuracy
| ≤1%@100% stroke
|
Precision (Repeatability)
| 0.3%~0.5%@100% stroke
|
Rated stroke (control steps)
| 30mm(12000 steps standard mode; 96000 steps micro-step mode)
|
Maximum speed
| 450rpm
|
Linear speed
| 0.0067mm/s ~ 15mm/s(media: water ; 1 rated stroke=one time)
|
Running time (per rated stroke)
| 2s-4500s(media: water ; 1 rated stroke=one time)
|
Resolution
| 0.0025mm (per step)
|
ILS Syringe
| 25μl, 50μl, 125μl, 250μl. 500μl, 1.25ml, 2.5ml, 5ml
|
Valve Model(available)
| M01、M02、M03、M04、M05、M06、M10、M12
|
Wetted material
| Borosilicate glass, PTFE, Sapphire, PCTFE
|
Max. Pressure Rating
| 0.7Mpa
|
Actuator
| Trapezoidal screw (Lead 1mm/2mm)
|
Connection
| 1/4-28UNF
|
Baud rate
| RS232/RS485: 9600bps, 38400bps
|
Communication addres
| Up to 15 individual addresses can be provided
|
Firmware
| Programmable acceleration/deceleration, termination of movement, programmable piston speed, diagnostic query error, programmable clearance compensation, absolute position or relative position, change speed on the fly, programmable Non-Volatile Memory
|
Power supply
| DC24V/3A
|
Operating temperature
| 5℃~55℃
|
Operating humidity
| <80% relative humidity, non-condensing
|
Dimension (L*W*H)
| 45*143.3*127mm
|
Max Power
| 25W
|
Net weight
| 1.5kg
|
