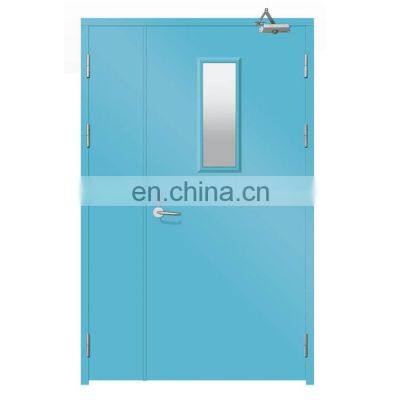

Commercial fireproof one hour two hours double leaf fire rated steel door for hospital
1
| Door leaf thickness
| 50mm or customized
|
2
| Steel sheet of fire door leaf
| 0.8mm cold rolled steel sheet
|
3
| Steel sheet of fire door frame
| 1.6mm cold rolled steel sheet
|
4
| Filler Material
| Perlite board, Silica aluminum silicate, Rock-wool, etc
|
5
| Standard size
| 860/900/960 x 2050 mm Or customized
|
6
| Frame depth
| 80-100mm, or customized
|
7
|
| Powder coated in RAL color
|
8
| Lock
| Fire lock, Panic bar, door closer are optional
|
9
| Hinges
| 3 pcs fire-proof hinge
|
10
| Threshold / sill
| Painted or stainless steel doorsill(stepped)
|
11
| Fire rated
| 45minutes, 60minutes, 90minutes
|
12
| Glass
| with fire rated glass
|
13
| Design
| Fireproof window: W or W/O
|
14
| Others more details
| Keep in complete form by≥950°C
|
Back side doorleaf average temperature is about 83.3°C after 1.2H or longer time burning
|
15
| Loading quantity
| 100-120SETS/20FCL; 280-310SETS/40HQ
|
