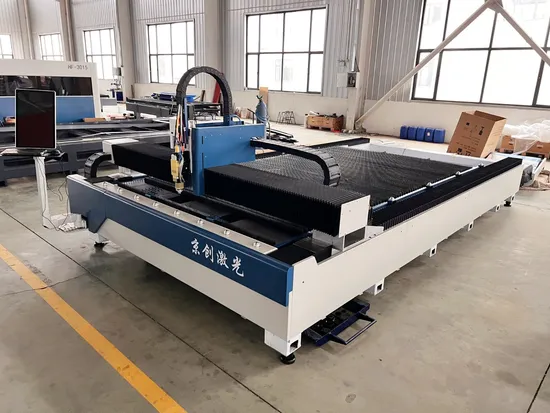

CNC Metal Sheet Fiber Laser Cutting Machine 1500W 3000W 6000W Laser Cutter

Product Description

Product Description
ODM/OEM fiber laser cutting machine single plateform metal processing machine
JA3015 lasted laser cutting machine for metal plate cutting machine
This fiber laser cutting machine has the following advantages: 1) High-rigidity heavy chassis, reducing the vibration generated during high-speed cutting greatly.
2) Gantry double-drive structure, with imported German rack&pinion transmission system,improves the production efficiency.
3) High-performance cast aluminum guide rail, after finite element analysis, realizes highly accelerated speed circular arc cutting.
Product Parameters

Model	JA3015
Working area	1500mm*3000mm
Laser type	Fiber laser generator
Laser power	1000W 1500W 2000W 3000W 4000W 6000W
Trabsmission system	Gantry double-drive structure
Lubrication system	Full-automatic
Maximum speed	120m/min
Maximum accelerated speed	1G
Position accuracy	±0.03mm/m
Graphic format supported	CAD. DXF (etc)
Working environment	Temp:0-40ºC,humidity:≤80%, No condensation
Gross weight	2000kg

Main parts
Machine Body--Heavy Welding Machine Body
The bed adopts a plate-welded integral welding structure, which is rough-processed after annealing to eliminate internal stress, and is finished after secondary vibration aging treatment, which can well solve the stress caused by welding and processing, thereby greatly improving The stability of the machine tool.

Aviation Aluminium Cross-Beam
It is made of 6061 aluminum material, cast into shape, rough machining after annealing to eliminate internal stress, and fine machining after secondary vibration aging treatment.
The net weight of the beam reaches 150 kg, which can effectively withstand higher impacts, ensures the overall strength, rigidity and stability of the beam, and can be adapted to higher power motors
For each beam, we must use a laser collimator to check the beam accuracy to ensure that the beam accuracy is within 0.03mm, otherwise it is a substandard product and will be returned and exchanged.

Laser cutting head - Raytools
1. The internal structure of the laser head is completely sealed, which can prevent the optical part from being contaminated by dust;
2. The laser head adopts two-point centering adjustment, and the focusing adopts cam structure, which is accurate and convenient to adjust;
3. The protective lenses are installed in a drawer style for easy replacement;
4. Can be equipped with various lasers with QBH connectors


Laser source - Raycus/MAX
Famous laser brand all over the world.
High electronic-optical conversion efficiency, good beam quality, wide modulation frequency, high reliability, long life and maintenance-free.

Company Profile
JINGCHUANG (Tianjin) Laser Technology Co., Ltd. (JATTRA GROUP) started in 2015, the company technical team are from more than 10 years of experience in the laser industry. The company uses the most advanced modern industrial technology means engaged in fiber laser cutting machine, fiber laser pipe cutting machine , fiber laser welding machine , CNC bending machine, sheet metal complete sets of related industrial equipment and sales. Products are widely used in precision machinery, auto parts , kitchen hardware, electronic appliances, smart home and many other industries.
Packaging & Shipping
CNC metal fiber laser cutting machine
1.Timely delivery. Each machine is arranged with precise assembly steps without any delay.
2.After-sales services and Guarantee. We offer 2 years warranty, during the period, any problem happen, we are responsible to solve. And if any part of the machine was broken, which happens rarely
3.Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.

After Sales Service
Free training course at our plant. Specialized after-sales service group 24 hours online each day, to provide free technical support by e mail, whatsapp, wechat and so on. Machine has been tested and adjusted before delivery, you can use the machine directly after receiving it. Providing technical services door to the door: we have professional engineers to offer machine installation commissioning and maintenance if customers pay ticket and related charges(accommodation problem) .(5 days training are free and overtime is 100 USD/Day) About installation, because we ship the machine by a full container we won't disassemble too much p arts, the main parts that need to connect is laser source, water chiller and controller. We have detailed manual and videos, if you don't understand, our after-sales service man can guide you hand by hand, video call is available.

---
