Basic Info.
Model NO.
ZLG260/ZLG300/ZLG350/ZLG400
Portable Harvester Type
Tractor Mounted Type
Application Field
Agriculture, Forestry
Name
Palm Oil Pickup Grabber
Max. out Reach
3m/3.5m/4m
Advantage
High Efficiency
Transport Package
Iron Frame Package
Production Capacity
7000 Sets/Year
Packaging & Delivery
Package Size
225.00cm * 50.00cm * 126.00cm
Package Gross Weight
470.000kg
Product Description
Agent Surprise!! Hydraulic Picking machine grabber powered by 35 HP-100 HP tractor
23-Year Factory!!
Product Description

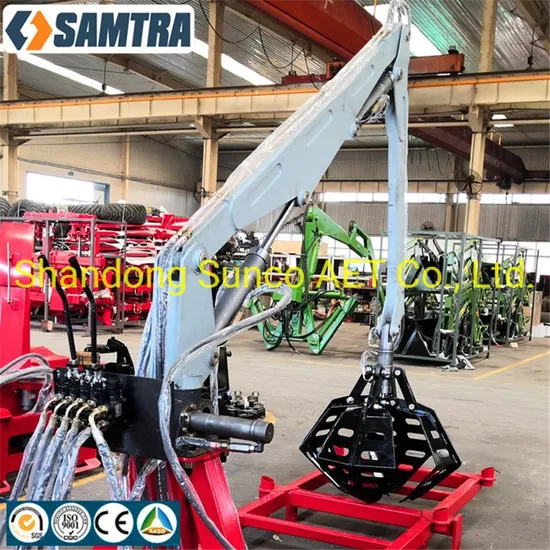

Palm oil fruit harvesting machine/pickup grapple
China SAMTRA ZLG Series Grabber for palm fruit collecting hot use in the oil palm planting area such as Malaysia,Indonesia,Thailand,Combadia,Colombia,Ecuador.
Advantages:
1. Compact Structure with hydraulic system.
2. Easy Operation by operating hydraulic valve.
3. Higher Efficiency in Picking up the Palm fruits.
4. Convinence and flexiblity in Plantations.
Detailed Photos
Product Parameters
| Palm Grabber Model | ZLG260 | ZLG300 | ZLG350 | ZLG400 |
| Max.outreach | 2.6m | 3m | 3.5m | 4m |
| Matching Tractor | 20-25Hp | 30-45Hp | ≥40Hp | ≥50Hp |
| Lifting capacity at | 100kg | 130kg | 180kg | 180kg |
| Slewing angle | 360° | 360° | 360° | 361° |
| Lifting Height | 2.6m | 3m | 3.5m | 4m |
| Weight of jaw grapple | 35kg (3jaws) | 55kg (4jaws) | 55kg (4jaws) | 55kg (5jaws) |
| Max jaw opening | 700mm | 1000mm | 1000mm | 1000mm |
| PTO pump system | standard | standard | standard | standard |
| Optional | 3 point Hitch Bracket |
Packaging & Shipping
Company Profile
---Kindly Reminding---
1. Shandong Sunco AET Co., Ltd. is a state-owned holding company, which is subordinate to Shandong Academy of Agricultural Machinery Sciences that dates from 1959.
2. We design, test, build and sell Agricultural Equipment and Tractor Attachments for 23 years in Shandong, China .
3. Our products are Made in China and Exported to Asia, Europe, America, Australia with annual exports over 15000 sets for more than 15 years.
4.Our machines could be mounted on Foton Lovol tractors, YTO, Dongfeng, etc.
Some machines could be assembled on skid steer loaders.
5.Main products: Front end loaders, Backhoes, trimmers, compost turners, forest machines, snow clearing machines, palm fruit grabbers, mowers and new products
