Factory Price Night Vision Surveillance Long Range Dual Sensor Thermal Camera

Product Description

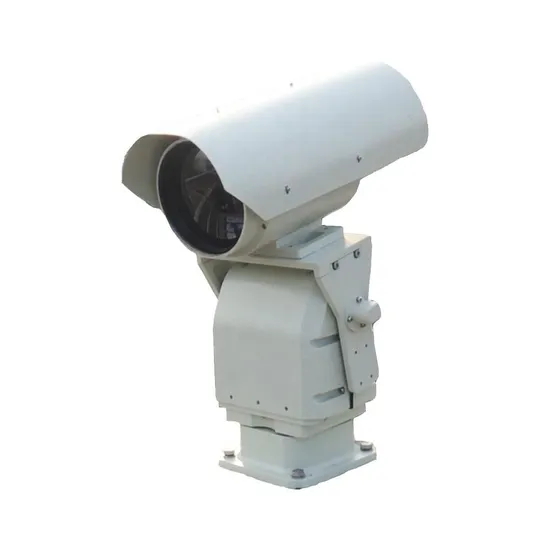

SHR-TIR30 Short Range PTZ Infrared Thermal Imaging Camera
1 Features

- 324x256 resolution, uncooled detector.
- NETD 50mk.
- Adopts Image Denoising tech, DDE tech, output black hot/white hot/palette colors.
- Low power consumption, quick start
-RS485, analog signal.
- Easy to operate and maintain.
- High aluminum alloy shell with nitrogen inside, can work under harsh
environment 24/7.

Distance	Target	Human (1.8m×0.5m)	Vehicle(2.3×2.3)
	Detection distance	720m	1980m
	Recognition distance	180m	490m
	Identification distance	90m	240m
Thermal lens	Focal length	30mm
	FOV	15.2°×11.4°
	IFOV	0.83mrad
Detector	Detector Type	Uncooled FPA
	Pixel	324×256(640*512 optional)
	Spectrum Range	8~14μm
	NETD	≤50mK@F1.0, 300K
	Frequency	25Hz
	Non- uniformity Correction	Auto/manual
	Image Process	AGC, DDE, Pseudo Color
	Video output	NTSC/PAL
Pantilt	Rotate	pan:0º ~ 360º tilt:+60°~ -60°
	Speed	Pan 0.1°~8°/S;tilt 0.1°~6°/S;
	Presets	200
	Communication Interface	Pelco-D,Pelco-P optional
	Baud Rate	2400/4800/9600/19200 bps optional
	Install	Top load
	Load at most	10kg
	Size	385mm×212.5mm×260mm(L×W×H)
Interface	Power	AC24V
	Other	RS485,BNC
Environment	Working temperature	-25ºC~+55ºC
	Storage temperature	-40ºC~+65ºC
	Protection	IP66
	Anti-vibration	10~55Hz,0.75mm
	Anti-impact	150m/s2,11ms
	Saltfrog proof	under PH6.5~7.2, continuous spraying fog for 48 hours
Power	Total	AC24V±10%,50Hz
	Consumption	≤50W
Physical features	Weight	7.25kg
	Installaiton	Outdoor base install

---
